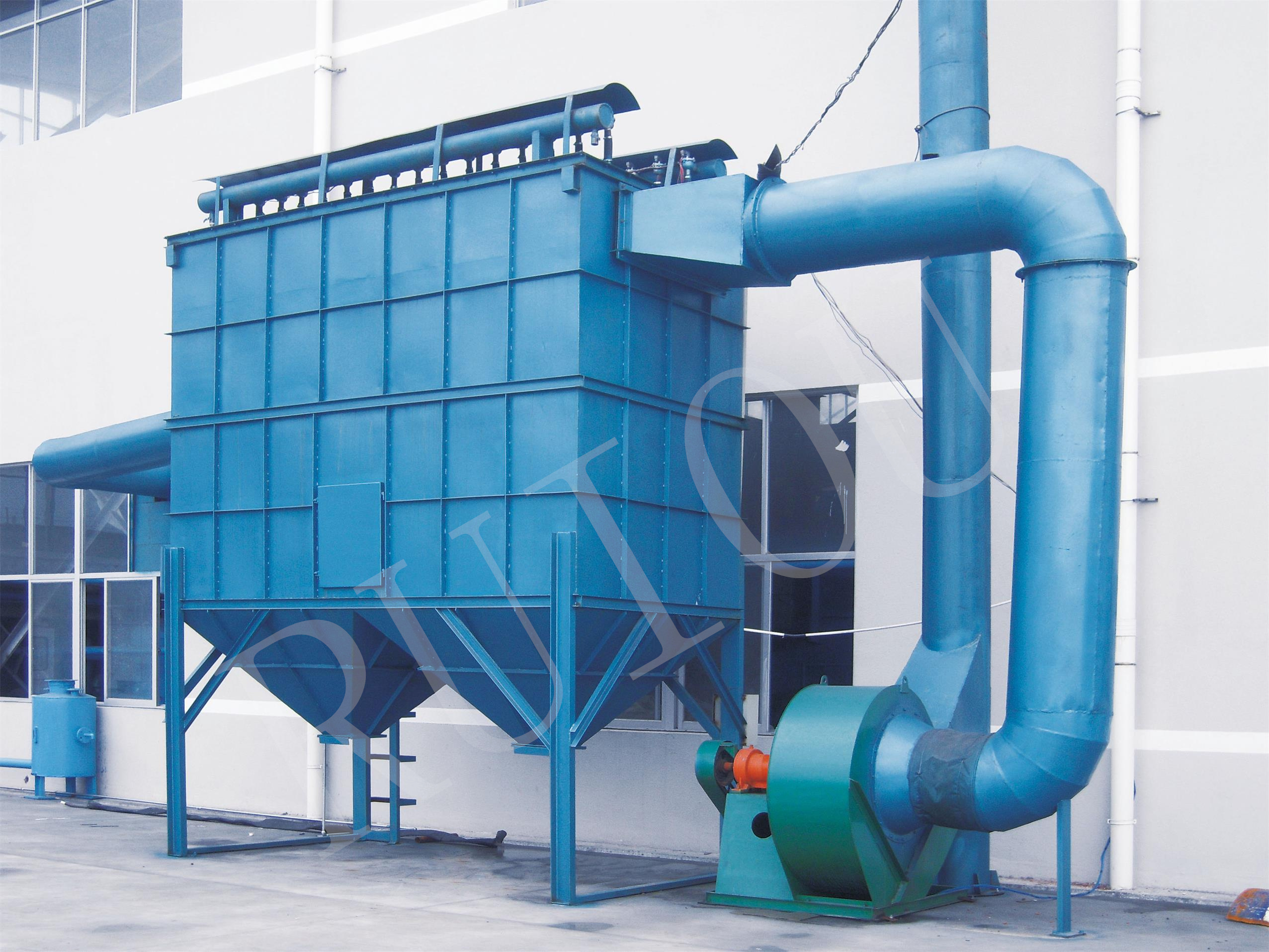

Pulse bag dust collector
Product Description
Product performance and characteristics
1. The structure has high dust removal efficiency, and the air volume and total pressure of the fan are selected reasonably, which ensures the dust removal effect of each node of the production line .
2. The ash cleaning is carried out in turn in the sub-chamber, which is the so-called offline ash cleaning. When a certain room is sprayed to remove the ash , the filtered airflow is cut off to avoid the second flying of dust caused by the spray cleaning.
★ Equipment selection and technical parameters
Model number | airflow dealer | Fan power | Dust collecting room | Total filtration area | Net filtration area | Filter bag count | Dust removal efficiency |
ROCC-64-5 |
22300m³/h |
30KW |
5 |
310㎡ |
248㎡ |
320 |
≥99.5 % |
ROCC-64-6 |
26700m³/h |
30Kw |
6 |
372㎡ |
310㎡ |
384 |
≥99.5 % |
ROCC-64-7 |
31200m³/h |
45KW |
7 |
434㎡ |
372㎡ |
448 |
≥99.5 % |
ROCC-96-5 |
33400m³/h |
45KW |
5 |
465㎡ |
372㎡ |
480 |
≥99.5 % |
ROCC-96-6 |
40100m³/h |
55KW |
6 |
557㎡ |
465㎡ |
576 |
≥99.5 % |
ROCC-96-7 |
46800m³/h |
75Kw |
7 |
650㎡ |
557㎡ |
672 |
≥99.5 % |
