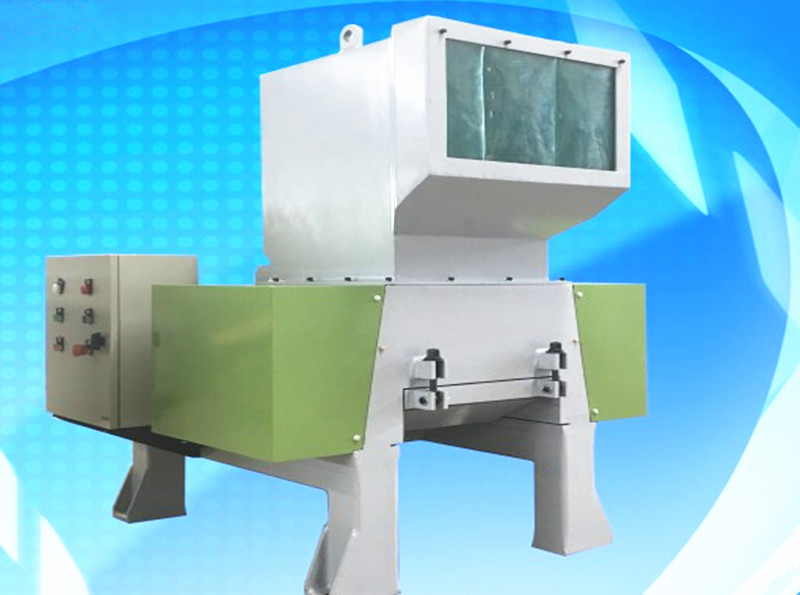

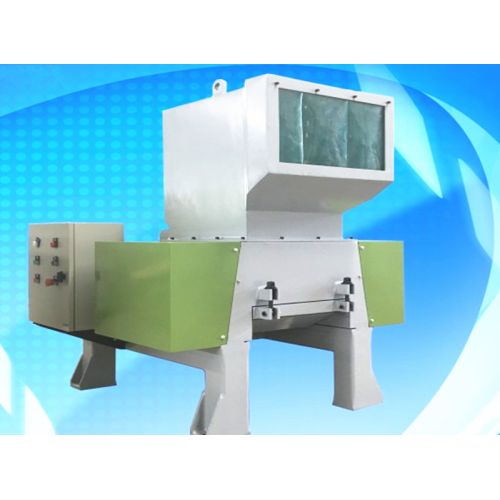

Economic Small Plastic Granulator/Crusher

Economic Small Plastic Granulator/Crusher

Product Description

The small plastic granulator is also popular as a plastic crusher. It features a compact design and small footprint. This is a popular pelletizer used primarily in small recycling facilities. It has also been adopted by some manufacturing plants as an in-house waste management solution.

The blade adopts stepped distribution which can improve the cutting force and enhance working efficiency. Movable screen and dismounting convenience are easy for cleaning and changing. Sound insulation interlace is used in the feeding mouth to reduce the noise level and improve the working environment. A limited switch is installed in the feeding mouth to protect the operator's safety. This machine is specially used for recycling of material head, leftover material, scraped injection molding and PET bottles. It can improve work efficiency matching with crusher. The discharge of this machine is equipped with a screen to control the crushed granules below a certain particle size. Thus it can make the final pellets suitable for processing in the next recycling step.



Attn: This machine can match an automatic suction device and dust collector.





Grinder Specification

Model Motor Power Hopper Size Capacity/Hour Rotor Dia. Blade Material
OGZ3060 22kw 600*250mm 300~400kg Φ300mm D2
OGZ3580 30kw 800*300mm 500~600kg Φ350mm D2



Plastic granulator pelletizing applications

Plastics: PET bottles, HDPE containers, plastic pipes/tubes, nylon scrap, PP flakes, plastic packaging, molding scrap (sprues, runners, cleaners)

Rubber: Hoses, rubber sheets, rubber mats, rubber tubes (such as tire inner tubes), bicycle tires, rubber blocks, rubber seals

Paper: Cardboard, newspaper, office paper, kraft paper, paper cores, cardboard tubes, paper packaging

Wood: Wood blocks, branches, slats



If there are still questions, you can ask us for any information before ordering

The type of pelletizer that best suits your needs depends on its intended use. Without the right size pelletizer and components, plastics that are too large or too small will not be processed properly, which can lead to higher energy consumption, additional dust and noise, and increased tool wear. To ensure that you choose the right plastic pelletizer for your intended use, the size of the machine is an important factor. In order to find the right size pelletizer, consider the following:



Application: Depending on the process, there are different requirements for the pelletizer, whether it is blow molding, injection molding, extrusion or recycling.

Material: What type of plastic is being processed? Different plastics may react differently in the pelletizer.

Feeding method: Feeding methods include manual, conveyor, roller feed, robot, etc.

Product: If bottles or sheets are being processed, the pelletizer may need to be configured differently.

Size: The size and thickness of the product being processed will also come into play.

Capacity: How much material can be processed per hour?

Screen size: What is the size of the material being processed?

Feel free to ask us questions!
