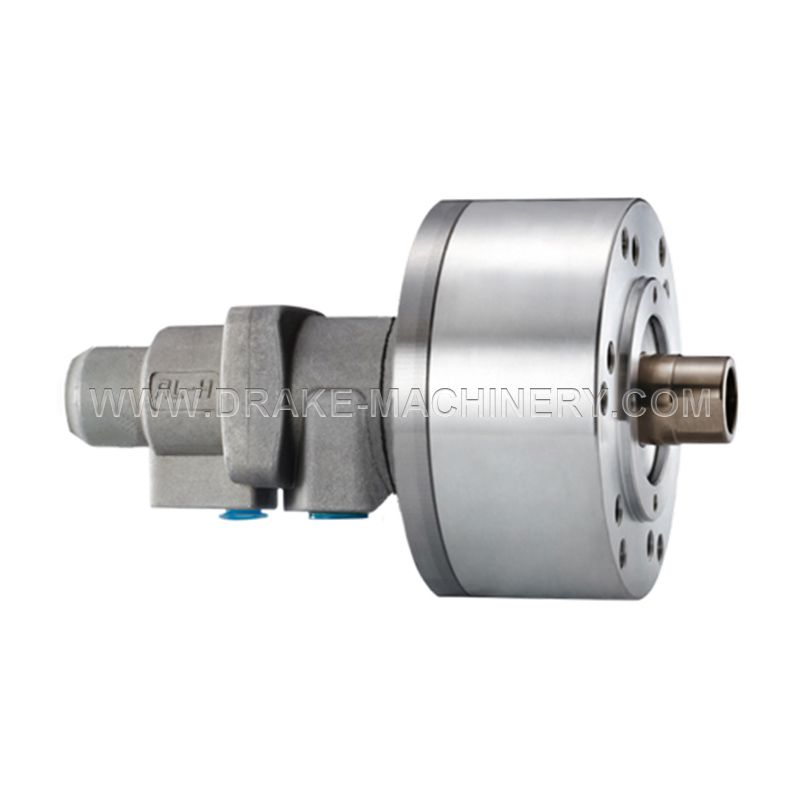

Rotating Hydraulic Cylinder
The cylinder body is made of high quality aluminum alloy, lightweight, small and durable. High speed performance stabiling. With built-in”check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.
Product Description
Product Parameters
● The cylinder body is made of high quality aluminum alloy, lightweight, small and durable.
● High speed performance stabiling.
● With built-in”check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.
● Waterflood rotary oil cylinder can be supplier from the back and.
● The rotary cylinder should not run without liquid thro.
Please review the following parameter table. We offer various types of rotating hydraulic cylinders. If you need any assistance, feel free to leave your email and questions, and we will arrange for a professional to connect with you!
| Dimensions(mm) | |||||||||||||
| Spec | A | B | D1 | D2 | E(H7) | F1 | F2(H8) | G | H | M1 | M2 | M3 | |
| Model | max | min | |||||||||||
| RL-75 | 75 | 107 | 90 | 90 | 65 | 28 | 21 | 45 | 30 | 60 | M20x35 | M8x65 | 6-M8x16 |
| RL-100 | 100 | 132 | 115 | 100 | 80 | 28 | 21 | 45 | 25 | 77 | M20x35 | M8x80 | 6-M10x20 |
| RL-125 | 125 | 160 | 140 | 130 | 110 | 35 | 25 | 50 | 85 | M24x40 | M8x90 | 6-M12x20 | |
| RL-150 | 150 | 190 | 170 | 45 | 31 | 55 | 98 | M10x100 | M10x100 | 12-M12x24 | |||
| Specifications | ||||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Air connection Max.pressure kgf/cm²(Mpa) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | ||||||
| RL-75 | 41.7 | 37 | 15 | 6000 | 40(4.0) | 35(3.5) | 1500(14.7) | 1330(13) | 0.02 | 4.6 |
| RL-100 | 75.4 | 70.8 | 20 | 5000 | 2710(26.6) | 2550(25) | 0.04 | 4.8 | ||
| RL-125 | 119.6 | 111.5 | 25 | 4300(42.1) | 4010(39.3) | 0.06 | 6.5 | |||
| RL-150 | 173.6 | 159.2 | 30 | 6250(61.2) | 5730(56.1) | 0.1 | 10.5 | |||
| The drain port should be independently connected to oil tank to avoid back pressure. | ||||||||||
