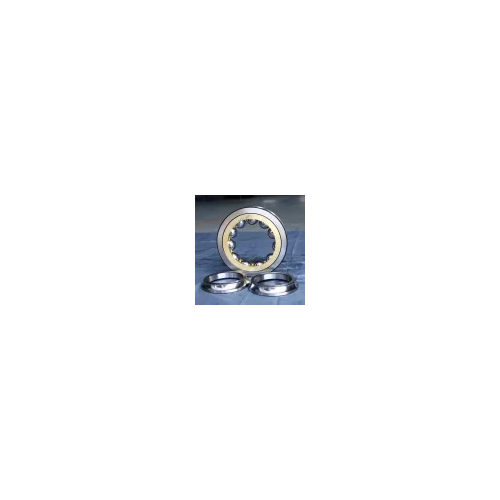

Angular Contact Ball Bearings
Angular contact ball bearings for coal crushers have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis.We support oem customization, contact us for more details.
Product Description
Precision Angular Contact Ball Bearing Description
Structure
Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis .
Features and benefits of Angular Contact Bearing
1.Accommodates axial loads in both directions
2.Less axial space:These bearings take up considerably less axial space than double row bearings.
3.High load carrying capacity:A large number of balls are incorporated, giving the bearing its high load carrying capacity.
4.Separable design:The split inner ring leads to easier mounting and dismounting of the bearing.
5.Improved oil flow
6.Limited inner ring deformation when subjected to high clamping forces
Contact us now to obtain an angular contact ball bearing price.
Types of Angular Contact Ball Bearings
| Bearing Type | Contact Angle | Load Capacity | Speed Capability | Radial Clearance | Axial Clearance | Examples of Applications |
|---|---|---|---|---|---|---|
| Single-Row Angular Contact Ball Bearings | 15°, 25°, 40°, 45°, 60° | Light to heavy axial loads, moderate radial loads | High | C2, C3, C4 | CN | Machine tool spindles, pumps, compressors, centrifuges |
| Double-Row Angular Contact Ball Bearings | 25°, 30°, 40°, 45° | Moderate to heavy axial and radial loads | Moderate to high | C2, C3, C4 | CN | Pumps, compressors, machine tool spindles, conveyor systems |
| Four-Point Contact Ball Bearings | 35° | Light to moderate axial and radial loads | Moderate to high | C2, C3, C4 | CN | Robotics, medical equipment, radar systems |
| Angular Contact Thrust Ball Bearings | 60° | Heavy axial loads, light to moderate radial loads | High | C2, C3, C4 | CN | Machine tool spindles, aircraft landing gear, robotics |
This chart can be used to compare and contrast the different types of angular contact ball bearings based on their key characteristics, such as contact angle, load capacity, speed capability, radial and axial clearance, and examples of applications. By understanding the unique features and benefits of each type of bearing, manufacturers and engineers can select the best option for their specific application requirements.
WBJF Bearings-Angular Contact Ball Bearing Manufacturers
Why WBJF?As an experienced angular contact ball bearing manufacturer, we specialize in producing top-quality bearings that meet the needs of our customers. Our team of skilled engineers and technicians works tirelessly to ensure that every bearing we produce meets the highest standards of quality and performance.
In addition to our standard product line, we also offer custom angular contact ball bearings for specific applications. For example, our Angular Contact Ball Bearings for Coal Crushers are specifically designed to handle the harsh conditions found in coal mining operations.Single-row angular contact ball bearings for steel crane trolleys,etc..These bearings are engineered to withstand heavy loads, shock loads, and high temperatures, making them the ideal choice for coal crusher applications.
Here is an example chart that can be used for a detailed analysis of custom angular contact ball bearings:
| Bearing Specification | Custom Requirements |
|---|---|
| Bearing Type | Angular Contact Ball Bearing |
| Size | Custom |
| Material | Custom (e.g. stainless steel, ceramic) |
| Cage Material | Custom (e.g. brass, polyamide) |
| Number of Rows | Custom |
| Contact Angle | Custom |
| Load Capacity | Custom |
| Lubrication | Custom (e.g. oil, grease) |
| Operating Temperature Range | Custom |
| Vibration Level | Custom |
| Noise Level | Custom |
| Testing Requirements | Custom (e.g. fatigue, impact) |
| Application | Custom (e.g. coal crusher, wind turbine) |
| Estimated Lifetime | Custom |
| Cost | Custom |
At WBJF, we are committed to providing our customers with the best possible solutions for their bearing needs. Whether you need standard or custom angular contact ball bearings, you can count on us to deliver high-quality products that meet your exact specifications.
