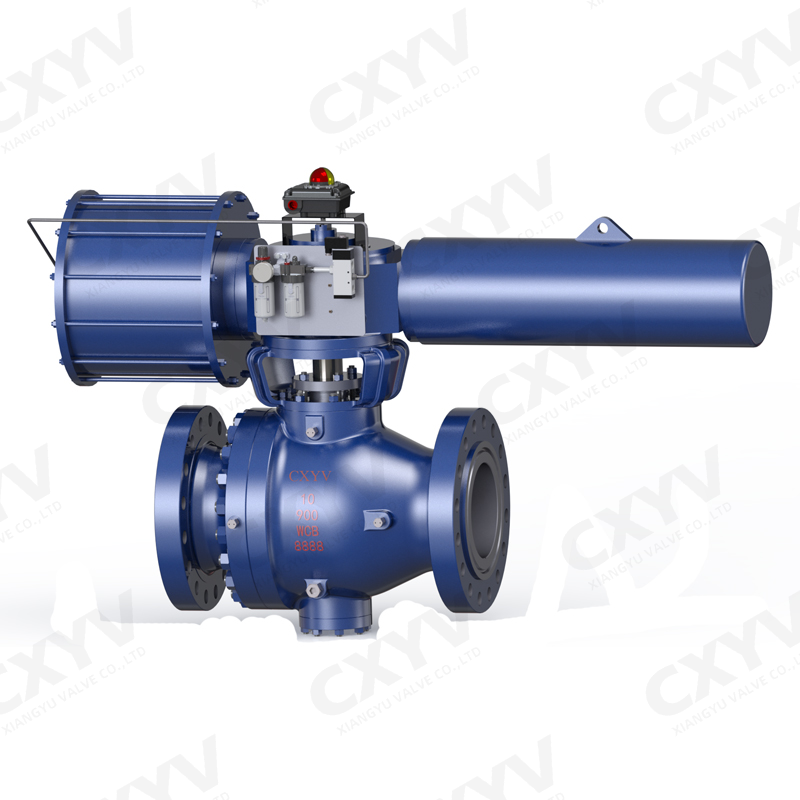

API6D 2 Piece Trunnion Mounted Ball Valve

API6D 2 Piece Trunnion Mounted Ball Valve

With its trunnion-mounted design, this API6D 2 Piece Trunnion Mounted Ball Valve is equipped with trunnion bearings that support the ball and reduce friction during operation. This feature allows for smooth and efficient operation, even under high pressure and temperature conditions. The design also ensures a tight seal, preventing any leakage or loss of pressure.

The API6D 2 Piece Trunnion Mounted Ball Valve is widely used in different industries, including oil and gas, petrochemical, power generation, and water treatment. It is suitable for both onshore and offshore applications, as well as various media such as water, oil, gas, and corrosive fluids.

One of the key features of this valve is its fire-safe design, which means it can withstand extreme temperatures and provide reliable shut-off in case of fire emergencies. It also meets the requirements for fugitive emission control, ensuring minimal leakage of any harmful substances into the environment.

This API6D 2 Piece Trunnion Mounted Ball Valve is available in various sizes, ranging from 2 inches to 48 inches, and pressure classes from 150 to 2500. It can be customized to meet specific project requirements, including material selection (carbon steel, stainless steel, or special alloys), end connections (flanged, welded, or threaded), and operation methods (manual, electric, or pneumatic).

The API 6D Trunnion Mounted Ball Valve undergoes rigorous quality control and testing procedures to ensure its performance and reliability. It complies with API 6D specifications and is often subject to additional tests, such as hydrostatic testing, fugitive emission testing, and fire testing.

In summary, the API 6D Trunnion Mounted Ball Valve is a durable and efficient valve that offers reliable shut-off and control in various industrial applications. Its trunnion-mounted design, fire-safe features, and customizable options make it a preferred choice for industries worldwide.

• Sizes: 2" – 48"
• Pressure Class: ANSI 150 through 2500
• Port: Full and Reduced
• Design Specifications & Compliance:
  • Design/Materials: API 6D 24th Edition, ASME B16.34
  • Inspection & Testing: API 6D / MSS SP134 and CSA Z245.15-17
  • Fire Safe Tested: API 607 & 6FA
  • Low Fugitive Emissions to API 641
  • Conforms to NACE MR0175/ISO 15156-1
  • End to End: ASME B16.10
  • Flanged End: ASME B16.5
  • API 6D Monogrammed
  • PED 2014/68/EU Annex III, Module H
• Body: CF8M Stainless Steel, Carbon Steel
• Ball: 316 Stainless Steel
• Ends: Flanged

• Additional Features:
  • Trunnion Mounted Ball
  • 2-piece Designs
  • Double Block and Bleed
  • Lever and Gear Operated
  • Lockable

CXYV valves is a leading API6D 2 piece trunnion mounted ball valve manufacturer & supplier in CHINA. CXYV valves are highly customizable and can be made to order with metal seated designs, cryogenic valves, 3-way valves and much more. Contact us now!
