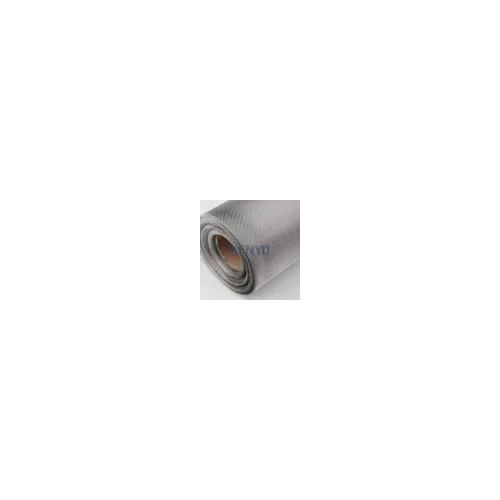

Stainless Steel Wire Mesh

Stainless Steel Wire Mesh is one kind of wire mesh netting, woven by stainless steel wire. It is also called woven wire, stainless steel wire cloth, stainless steel mesh screen, stainless mesh, stainless wire mesh, ss wire mesh.

Product Description

Stainless Steel Wire Mesh is one kind of wire mesh netting, woven by stainless steel wire. It is also called woven wire, stainless steel wire cloth, stainless steel mesh screen, stainless mesh, stainless wire mesh, ss wire mesh. Many different grades of stainless are used in wire mesh. 304, 304L, 316, 316L are the most common, others are used in specific applications to take advantage of each grade’s unique properties. If you want to learn more about 304 stainless steel wire mesh, you can read the article What is stainless steel woven wire mesh?



Stainless Steel Wire Mesh Parameters

1. Material Types: Mild steel wire, brass wire, nickel wire, stainless steel wire, polyester filter.

2. Materials: SUS 302, 304, 304L, 316, 316L.

3. Weave Patterns:

3.1 Plain Weave:

Plain weave is the most basic weave, also known as tabby weave, linen weave or taffeta weave. In weaving, the warp and weft are aligned to form a simple cross pattern.

3.2 Plain Dutch Weave:

similar with plain weave, except that the weft and warp wire have different wire diameters and different mesh sizes.

3.3 Twill Weave:

In the weaving, each weft or weft floats on the warp in a staggered order to the right or left, creating a distinct diagonal line that is also called a wale.

3.4 Twill Dutch Weave:

similar with twill weave, except that the weft and warp wire have different wire diameter and different mesh size.

Stainless Steel Wire Mesh Plain Weave

Different types of stainless steel screens



4. Characteristic: Good anti-wear characteristic, heat-resistance and acid, corrosion resistance.

5. Use: Stainless Steel Dutch Weave Filter Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom communication, scientific research units etc.

6. Application: Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Barbecue Wire Mesh, Window Curtain, Cages.



Benefits of Stainless Steel Wire Mesh

Durable stainless steel window screens and corrosion resistance stainless steel wire mesh are beneficial for your home due to the features of resist rust and corrosion. In addition, stainless steel replacement screens are usually cheaper than aluminum replacement screens. To sum up, we provide high-quality products like aluminum alloy window screen that can be used in outdoors and at home.

We offer custom orders through our website and phone line. Please contact us, if you have interest in our product! We will provide you with the best quality service.



Stainless Steel Wire Mesh Specifications

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave

Mesh

Wire Dia. (MM)

Opening (MM)

Material (AISI)

7meshx7mesh

1

2.63

304 or316

10meshx10mesh

0.6

1.94

304 or316

12meshx12mesh

0.5

1.62

304 or316

16meshx16mesh

0.4

1.19

304 or316

16meshx16mesh

0.35

1.24

304 or316

18meshx18mesh

0.35

1.06

304 or316

20meshx20mesh

0.4

0.87

304 or316

24meshx24mesh

0.26

0.8

304 or316

30meshx30mesh

0.3

0.55

304 or316

35meshx35mesh

0.17

0.56

304 or316

40meshx40mesh

0.23

0.4

304 or316

50meshx50mesh

0.2

0.31

304 or316

60meshx60mesh

0.15

0.27

304 or316

70meshx70mesh

0.12

0.24

304 or316

80meshx80mesh

0.13

0.19

304 or316

90meshx90mesh

0.12

0.16

304 or316

100meshx100mesh

0.1

0.15

304 or316

120meshx120mesh

0.09

0.12

304 or316

150meshx150mesh

0.063

0.11

304 or316

180meshx180mesh

0.053

0.09

304 or316

200meshx200mesh

0.053

0.07

304 or316



Stainless Steel Wire Mesh and Wire Cloth, Twill Weave

Mesh

Wire Dia. (MM)

Opening (MM)

Material (AISI)

250meshx250mesh

0.04

0.063

316

300meshx300mesh

0.04

0.044

316

325meshx325mesh

0.035

0.043

316L

350meshx350mesh

0.03

0.042

316L

400meshx400mesh

0.03

0.033

316L

450meshx450mesh

0.028

0.028

316L

500meshx500mesh

0.025

0.026

316L



Stainless Steel Wire Cloth, Dutch Weave

Mesh

Wire Dia. (MM)

Material (AISI)

12mesh x 64mesh

0.58 x 0.40

304 or 316

24mesh x 110mesh

0.36 x 0.25

304 or 316

14mesh x 88mesh

0.50 x 0.33

304 or 316

30mesh x 150mesh

0.23 x 0.18

304 or 316

40mesh x 200mesh

0.18 x 0.13

304 or 316

50mesh x 250mesh

0.14 x 0.11

304 or 316

80mesh x 700mesh

0.10 x 0.08

304 or 316

165mesh x 800mesh

0.071 x 0.040

304 or 316

165mesh x 1400mesh

0.06 x 0.04

304 or 316

200mesh x 1800mesh

0.05 x 0.032

304 or 316

825mesh x 2300mesh

0.035 x 0.025

316L

400mesh x 2800mesh

0.030 x 0.02

316L



Payments of Stainless Steel Mesh For Windows

This supplier also supports L/C, T/T, Western Union, MoneyGram payments.

Quantity (Rolls)

1-1

2-100

101 - 300

>300

Est. Time(days)

7

10

20

To be negotiated



Zenyo is a professional metal wire mesh manufacturer and supplier with more than 35 years of experience. The window screen is one of our main products.Our company has a professional and efficient team dedicated to the development, production and distribution of various wire mesh products.Any inquiry, suggestion, or criticism, we would love to hear from you.
