Male Female Pipe

Product Description

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 26Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI



Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 11%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron



The general guideline is that for every male pipe fitting there is usually a corresponding female fitting. When it comes to pipe fittings, it is rarely necessary to simply fit pipes inside a pipe. The pipe being joined needs to be sealed to be water or gas tight, so a simple pipe to pipe slotted fitting is not effective. The pipes to be connected need to be joined. All connectors are assigned a gender, abbreviated M or F, and they are 'paired' to form the required connection. There are also connectors that contain both female and male components in one unit.

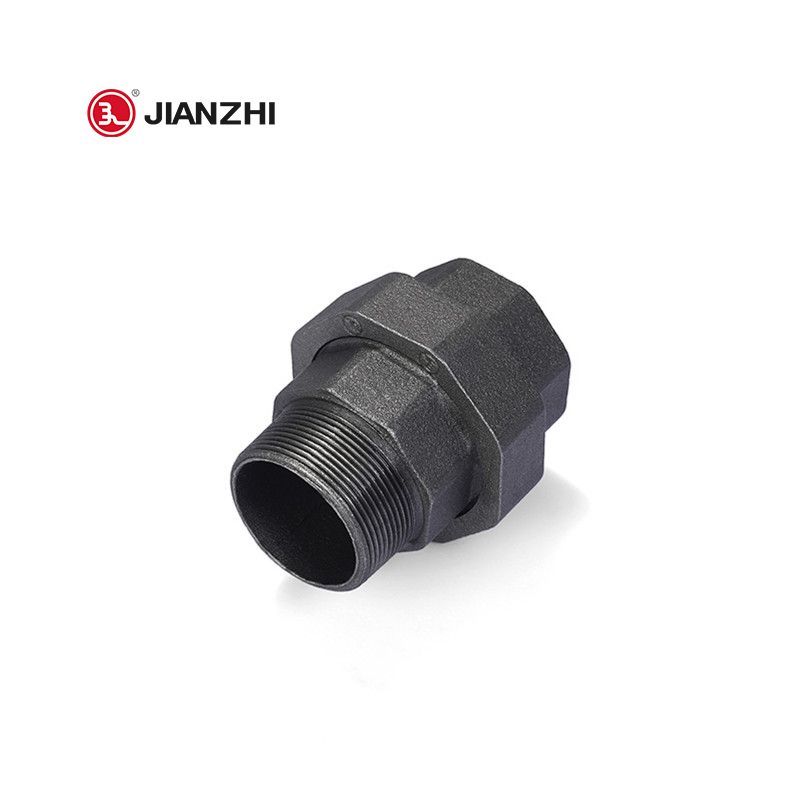

Connection Pipe Fitting, also known as the union, is a kind of pipe fittings. It is made of malleable iron, the shape is a stereoscopic polygonal design. The inner layer is engraved with threads. And No. 331 has male threads and female threads joint. The two ends are connected with the corresponding pipe threads.

It is mainly used to connect matching hardware accessories and can be installed in various pipe connections. Because the union has the advantages of convenient installation and disassembly, it is widely used in civil construction, plumbing engineering, automobile manufacturing, shipbuilding, and other industries.

In JIANZHI, we can also provide you Free samples to test the quality. We hope to provide fine-quality pipe fittings for customers from all over the world. Help you to develop further business.

male pipe fitting
