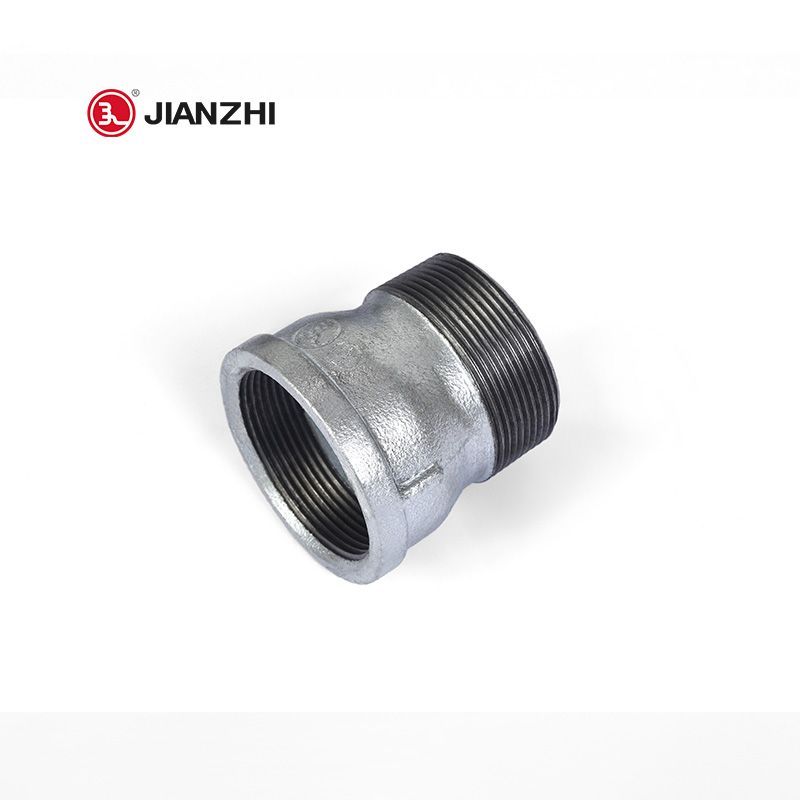

gi pipe socket fittings

Size: 1/2''-2''(D15-DN50)
Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: 200°C (392°F)
Tensile Strength: 350MPA
Hardness: HB150 (Brinell)
Elongation Rate: 10%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Malleable Iron
A gi pipe socket fittings is a fitting that simply goes over the end of a pipe.

Approval Information

JIANZHI produces pipe sockets in full compliance with ISO 9001, ISO 14001, OHSAS18001, CE, UL and other certificates. Click here to view the certificates.
Function
The pipe socket maintains proper flow to keep the water flowing in the correct direction. It is easy to use and easy to resolve the combined flow of water in any direction.
pipe sockets are components used in many different industries to connect, terminate, control flow and change the direction of pipes. When purchasing fittings, consider the application as this will affect the type of material, shape, size and durability required. Fittings are available threaded or unthreaded, in a variety of shapes, styles, sizes and schedules (pipe wall thickness).

Features

Easy to install
Durable for hot wastewater treatment
UV stabilized to ensure long life
Maintenance free

What are gi pipe fittings?

As the name suggests, gi pipe fittings are ductile pipe fittings. After galvanizing treatment, a galvanized layer is attached to the surface of the pipe fittings. The main purpose of galvanizing the surface of forgeable steel pipe fittings is to isolate the pipe fittings from oxygen and moisture in the air, thereby preventing the gi pipe fittings from rusting and increasing the service life of the pipe fittings, especially the forgeable steel pipe fittings.

Gi pipe fittings are exposed to the outdoors for a long time. On the other hand, galvanizing is also an effective method of operation. Since the surface of gi pipe fittings is already galvanized, it saves the time of oiling or painting the surface of the pipe fittings, making the manufacturing process not only more convenient, but also a time-saving and money-saving method. In oil and gas systems, galvanized pipe fittings are the preferred choice due to the specificity of their industry.

gi pipe socket fittings
