Swf 590 Baked Food Form Flow Wrap Packing Machine Fill Seal Packing Wrapping Machine

Product Description

Country/Region:China

City:Qingdao

Product Attributes

  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Related Keywords Flow Wrap Packing Machine

Description by Manufacturer

PRODUCT DESCRIPTION

SWF-590 Baked Food Form Fill Seal Type Packing Wrapping Machine


For this packing machine, film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical Form-Fill-Seal type Packing Machine. The packing machinery machine is stable and accurate.

What Is Horizontal Form fill seal Packing Machine?

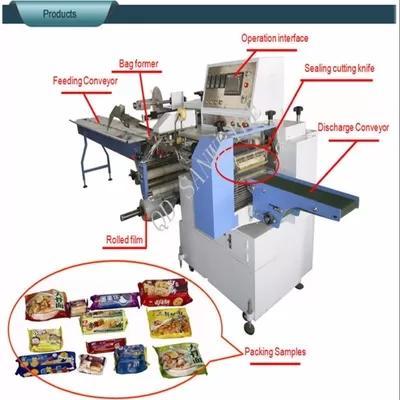

The drawing below shows a horizontal flow wrapping packing machine:

The flow wrapping packing machine packages product by wrapping it in film. The flow wrapping packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.


Application of Form fill seal Packing Wrapping machine:
Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Parameters of the Pillow Type Automatic Packing Wrapping Machine
Max width of film450mm
Packaging rangeL:53~300mm, W:20~100mm, H:5~70mm
Packing speed30-100Bags/min
Category of filmHeat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor1.5KW
Power of electrical2.5KW
Total power4.6KW single phase 220V
Overall dimension L×W×H5700×960mm×1480mm
WeightAbout 1000kg


Features of Pillow Type Automatic form fill seal packing wrapping machine:
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine



Why choose us:


1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine

Services of our company:

We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We provide related spare parts of our packing machine
We also provide customized products according to customer's request

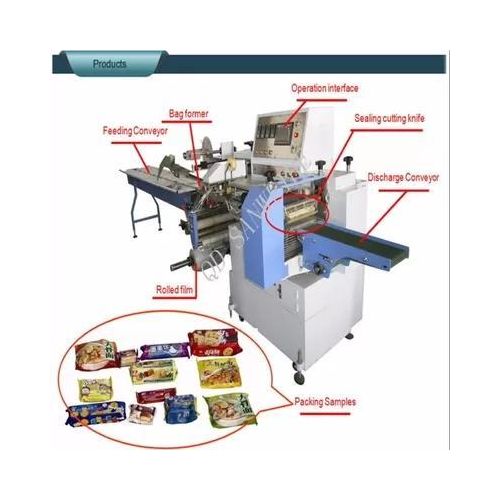

Product Image

Description by Manufacturer

PRODUCT DESCRIPTION

SWF-590 Baked Food Form Fill Seal Type Packing Wrapping Machine


For this packing machine, film enters the former from below the product. This ensures a smooth product transfer and secure product handling of multipack and flexible products, not possible on a typical Form-Fill-Seal type Packing Machine. The packing machinery machine is stable and accurate.

What Is Horizontal Form fill seal Packing Machine?

The drawing below shows a horizontal flow wrapping packing machine:

The flow wrapping packing machine packages product by wrapping it in film. The flow wrapping packing machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.


Application of Form fill seal Packing Wrapping machine:
Single Piece product packaging:
Bread, chocolate enrobed cheese bar, popsicles, cookies, waffles, trowels, cotton wool.
Group packaging:
Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Parameters of the Pillow Type Automatic Packing Wrapping Machine
Max width of film450mm
Packaging rangeL:53~300mm, W:20~100mm, H:5~70mm
Packing speed30-100Bags/min
Category of filmHeat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor1.5KW
Power of electrical2.5KW
Total power4.6KW single phase 220V
Overall dimension L×W×H5700×960mm×1480mm
WeightAbout 1000kg


Features of Pillow Type Automatic form fill seal packing wrapping machine:
1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former
We have both the button controlled flow packing machine and the PLC touch screen controlled flow packing machine



Why choose us:


1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable packing machine for your specific need
3. Our professional workers will make the perfect packing machine for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality packing machine

Services of our company:

We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We provide related spare parts of our packing machine
We also provide customized products according to customer's request
