Product Description

Specifications

Description

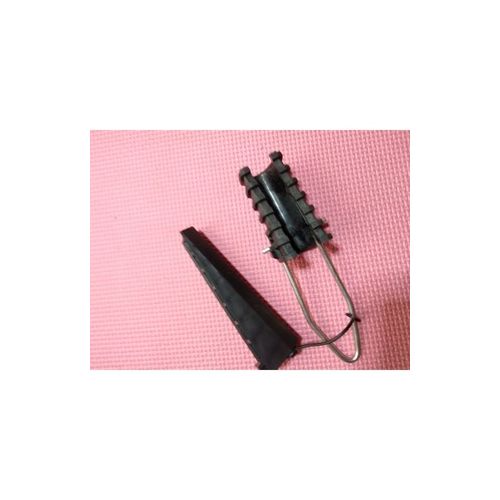

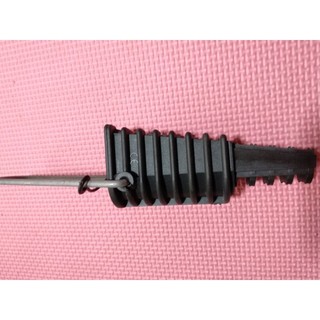

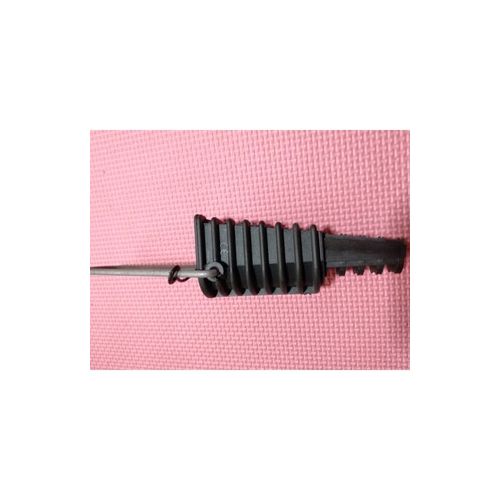

Dead-end Anchoring Clamp For ADSS/Round Cables/ Messengered Fig-8 Cables

Description

For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

Models PA35-S(*) PA57-S(*) PA69-S(*)
Cable Diameter(mm) 3~5 5~7 6~9
L(mm) 120, 200, 300 120, 200, 300 120, 200, 300

(*)Add L(mm) in models
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
Tensile strength according to the cable
