Replacement Wave Screens for Derrick 500 Series Shale Shakers

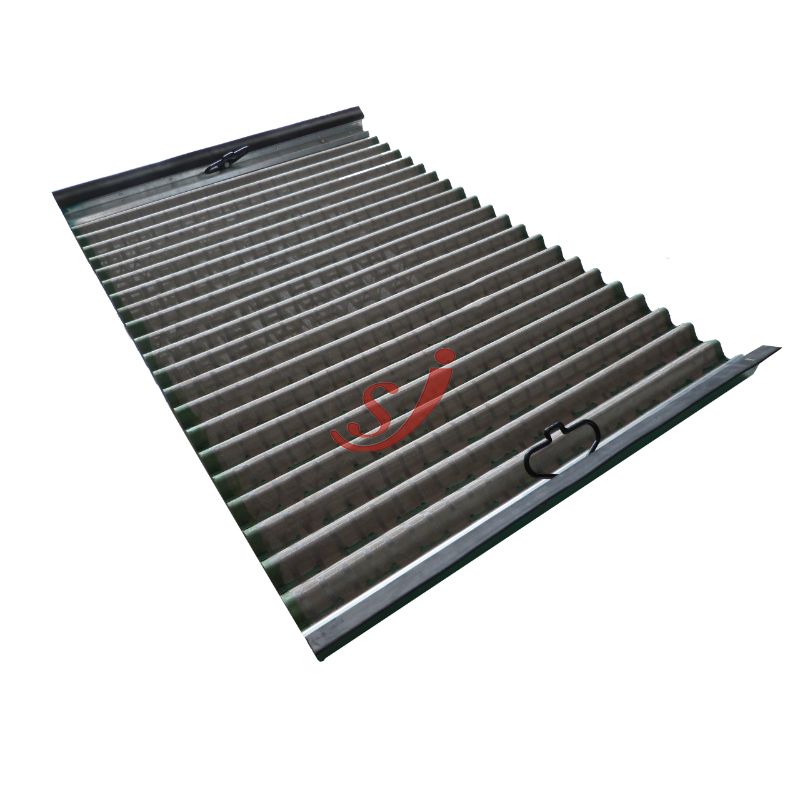

Derrick 500 Wave Shaker Screen replacement is manufactured for all Derrick 500 series shale shakers. Innovative tension fingers and two quick-lock 1/2 turn tension bolts on each screen panel make the installation faster, easier and more reliable. The bottom layer with low mesh counts is waved by coarse wires, then tightly bonded to the backing plate. It offers longer service life and maximizes the separation efficiency.

Find high-quality replacement wave screens for your Derrick 500 Series shale shakers at competitive prices. Our screens are designed for durability and efficient solids control. Contact us for pricing and availability.

Technical Parameter

Material: stainless steel 304/316/316 L.

Body Material: stainless steel plate.

Construction Type: Wave Type.

API RP 13C Designation: API 20 – API 325.

Series: DX, DF, HP optional.

Color: green.

Package: 2 pcs per carton, packed in per wooden case.

Adaptable Shale Shaker Model

SJ-Wave 500 shaker screens are used as the substitute screen for:

Derrick FLC (Flo-Line Cleaner) 503 shaker.

Derrick FLC (Flo-Line Cleaner) 504 shaker.

Derrick FLC (Flo-Line Cleaner) 503 drying shaker.

Derrick FLC (Flo-Line Cleaner) 504 drying shaker.

Derrick FLC (Flo-Line Cleaner) 513 shaker.

Derrick FLC (Flo-Line Cleaner) 514 shaker.

Derrick FLC (Flo-Line Cleaner) 513 VE (Vapor Extraction).

Derrick FLC (Flo-Line Cleaner) 514 VE (Vapor Extraction).

Remakrs:

The trade marks Derrick, FLC, and Pyramid are owned by Derrick Corporation.

Competitive Advantage

Resistant to corrosion, high temperature and collision.

Quick-lock tension system, excellent trapping (dreg) effect.

56% more screen surface area than flat screens.

Maximize the solids removal capabilities.

Increase shaker capacity and reduce mud loss.

API RP 13C (ISO 13501) compliant.

Adequate inventory in the shortest time to meet customers' demand.

Warranty Period: 1 year.

Working Life: 400-450 hours.
