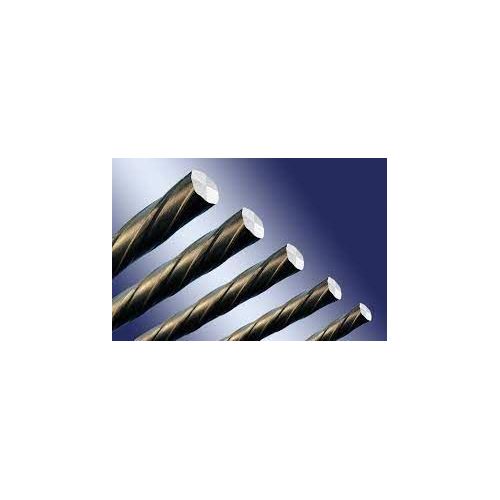

Prestressed Concrete Steel Wire Spiral Ribbed

Product Description

Features of Prestressed Concrete Steel Wire

PC Wire (also referred to as Prestressed Concrete Steel Wire) is high tensile, low relaxation steel wire made from high-carbon steel and widely used for prestressed and post-tensioning technology in various shapes of PC structures. It has the following characteristics and advantages:

● High tensile strength and low relaxation

● More bonding stress between wire and concrete

● Stable modulus of elasticity

Prestressed Concrete Steel Wire Properties:

Product Name	PC Wire(Prestressed Concrete Steel Wire)
Type of Surface	Spiral Ribbed, Indented, Plain
Materials	SWRH82B
Diameter	4.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm
Surface treatment	Uncoated prestressed steel wire, prestressed epoxy coated steel wire and galvanized prestressed steel wire.
Tensile Strength	1470Mpa-1770Mpa
Relaxation (%)	≤2.5
Elongation (%)	≥3.5
Standard	ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard.
Packing	Packed in coils (around 700-1300kg/coil). Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & PP woven sheet.
Prestressed Concrete Steel Wire Application	PC Wire is characterized with high tensile strength and low relaxation. It's widely used in production of prestressed spun concrete poles, PHC Piles, in construction of large scale railroad, high-way bridges, building trusses, overhead crane beams, industrial and civil prefabricated concrete slabs, wall board, power station, etc.
HUAYONGXIN Advantages	Extensive experience in exporting. Professional team to manage production and control product quality. Equipped with advanced testing facilities and abide by the principle of testing each coil produced.
