Sanitary Pipe 304/316

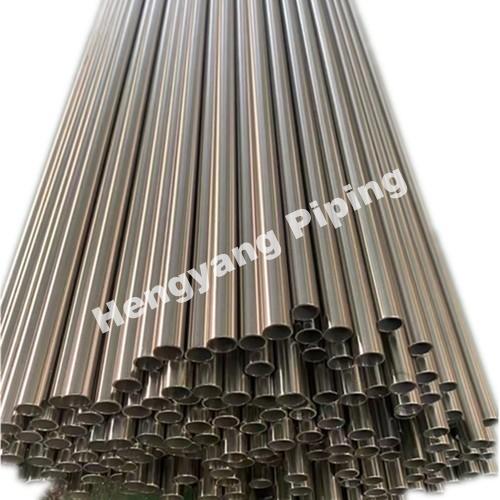

ASTM A270 Sanitary Stainless Steel Tubes/ Mirror Polished Tube 304L 316L

What is sanitary tube?

Sanitary tubing and fittings (also called hygienic tubing and fittings) were developed and used because they are cleanable. ASTM A270 defines the grades of seamless, welded, and heavily cold worked austenitic and ferritic/austenitic stainless-steel sanitary tubing. Our pipe and tubing adhere to these stringent standards, guaranteeing exceptional quality and performance.

Austenitic Stainless Steels are non-magnetic stainless steels that contain high levels of chromium and nickel and low levels of carbon. Known for their formability and resistance to corrosion, austenitic steels are the most widely used grade of stainless steel.

Sanitary stainless steel tubes are mostly used in Food, Beverage & Dairy Process lines.

Available Size: OD: 1''-8''

Wall: 0.89, 1.2, 1.5, 1.6, 2mm

According to clients' requirement.

ASTM A270 sanitary tubing advantages

1. Versatile Design: Available in a variety of sizes, including up to 12 inches with a maximum outer diameter of 300mm, sanitary stainless steel tube caters to diverse applications. Their adaptability allows for both hot and cold-rolling to achieve desired characteristics.

2. Strength and Durability: These stainless sanitary tubing are engineered to withstand stress-induced conditions, ensuring they remain strong and resilient even in the most demanding environments. Their robust design and absence of seams on the surface make them exceptionally durable.

3. High-Temperature Performance: ASME SA 270 Stainless Steel Pipe, a part of our product range, is engineered for high-temperature and high-pressure applications. Its exceptional performance under pressure makes it a reliable choice.

4. Weldability: A270 sanitary stainless steel tubing is weldable using automated procedures, eliminating the need for filler material. Prior investigation ensures suitability for use in tough conditions.

5. Purity and Cleanliness: Ideal for industries where the highest degree of purity and cleanliness is non-negotiable, sanitary stainless pipe meets ASTM A270 and 3A standards. It exceeds most user specifications, providing unrivaled purity.

ASTM A270 sanitary tubing applications:

ASTM A270 A270M sanitary tube finds its natural habitat in the dairy, food, and beverage industries. It's the go-to choice when you need uncompromised purity and cleanliness. Certified to the requirements of ASTM A270 and 3A standards, stainless steel sanitary pipe sets the industry benchmark.

Main Grades: 304/L, 304H, 304LN, 321/H, 316L, 316Ti, 316H, 316LN, 316LMOD, 310S, 310H, 317L, 347H, 347HFG, 309S, 904L, S31254 (254SMO) etc.

Standards（Part）：

ASTM A269 Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service

ASTM A270 Standard Specification for Seamless and Welded Austenitic and Ferritic/Austenitic Stainless Steel Sanitary Tubing

ASME SA249 Welded Austenitic Steel Boiler, Superheater, Heat Exchanger, and Condenser Tubes.

ASTM A312 Seamless and Welded Austenitic Stainless Steel Pipes

ASTM A358

JIS G3463

JIS G3459

GOST 9941-81

DIN 17456-8599
