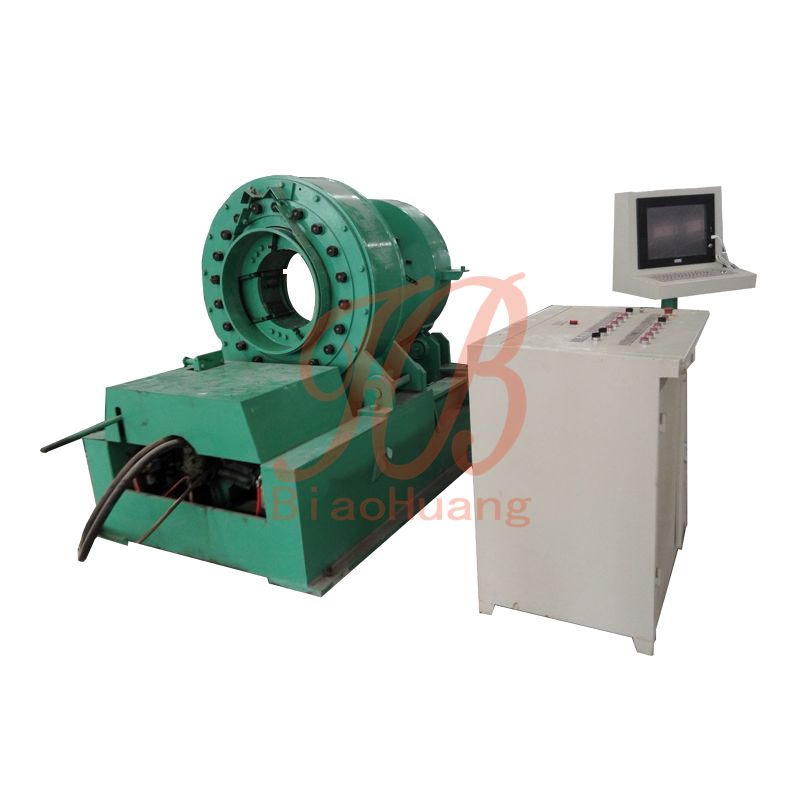

BHJG230 Bucking Machine

HJG230 torque machine has six parts: driving clamp system、backup clamp system、hydraulic system、pneumatic system、manipulating platform and frame base.

The Driving clamp is driven by hydraulic motor and it is used to screw on and tighten (screw off) the coupling. The Buckup clamp is driven by pneumatic cylinder and it is used to fix the pipe. the screw on torque value is output by tension sensor and controlled by PLC system.

This Bucking Machine can finish the work of 2 3/8″-7″diameter casing and tubing, the jaw plate includes: 2 3/8″— 2 7/8″— 3 1/2″— 4 1/2″—5 1/2″—7", other sizes need to buy.

Product Application

BHJG230 torque machine produced by our company is special equipment used to screw on and off the coupling and pipe(tubing & casing).

Features

1. BHJG230 torque machine is driven and controlled by hydraulic and pneumatic system, the system is easy and convenient to operate.

2. The system is controlled by hydromantic except for the driving clamp which driven by hydraulic motor, it can greatly reduce the oil leakage.

3. The Driving clamp uses closed structure, it is driven by hydraulic motor, the clamp head has 3 jaw plates with 120º distributing, every jaw plate has 2-3tooth, totally 6-9 tooth contacting the coupling surface, the teeth marks are according to API standard, the clamp head can reset automatically.

4. Back up clamp is similar to the driving clamp, but it is driven by the pneumatic cylinder .The driving clamp and backup clamp can regulate their center in one line automatically to meet the requirements of using.

5. It is easy to replace the dies

6. The backup clamp is equipped with tension sensor used to measure torque (the unit is KN.m). The control system will contrast the torque value and screw circles with the setting value, control the machine operating automatically.

7. Double pumps oil supply, adjust speed automatically, high speed screw, low speed torque, to meet the demand of special threads.
