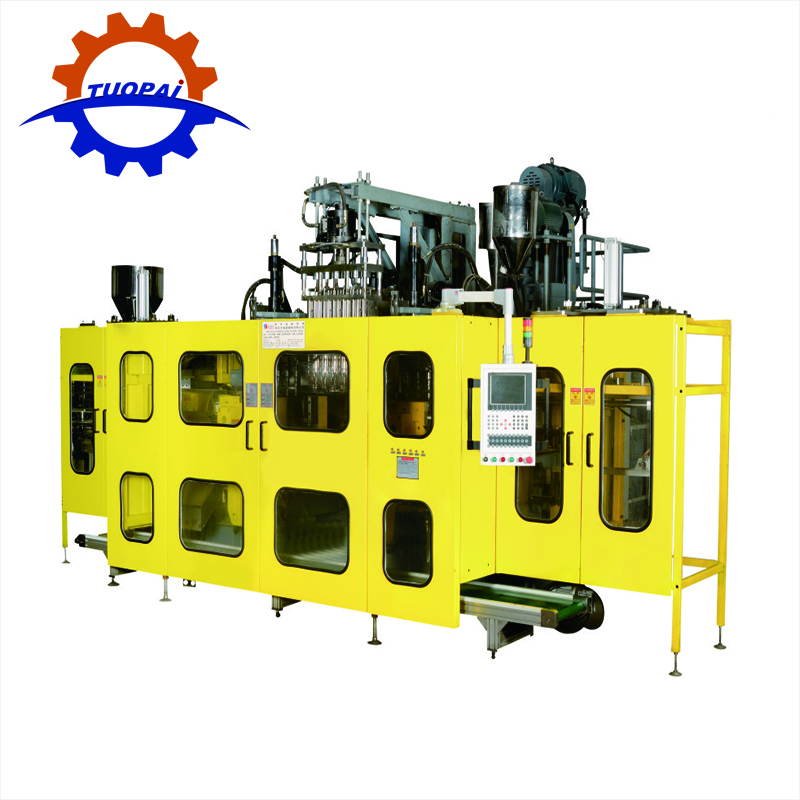

150ml-15L Pesticide Bottle Co-Extrusion Blow Molding Machine

KSY105-15L Blow Molding Machine Main Parameter

Pesticide Bottle Multi-Layers Co-Extrusion Blow Molding Machine

Appllication:

Automatic Multi-Layers Co-Extrusion Blow Molding Machine mainly to use make 100ML-15L Pesticide Bottle with transparent line

Automatic Single/Double Station Blow Molding Machine special for plastic PETG material and Feature as below:

1. Linear guider strip style

2. With single station or double station

3. Adopt 1-4 die mold heads

4. Multi-layers :1-6 Co-Extrusion Layers

5. Multi cavities: 1-4 cavities

6. Production Volume: 100ml-15L

7. Application Products: Pesticide Bottle

8. Optional Parison controller / Auto Deflasher / Auto material fedding / Auto Recycling / IML(In Mold Labeling)/Leakage detector / Filling / Packing onlined full automatic production.

9. Ensuring 1-6 layers of resin completely melt, blow molding machine using the latest international composite super imposed multilayer flow design. make the flow smooth and has no dead angle, the material and color piece can be changed, the material base of good quality.

10. The extrusion system of single layer extrusion blow moulding machine consists of 1 set of extrusion and composition,machine parts and screws adopt high quality nitride alloy steel, have high surface hardness, long service life and good quality of plasticzing, which is suitable for processing high molecualr weight polyethlene. The pressure sets on the extrusion system can make sure the stability of material base of the continuous co-extruding die.

11. Introducing advanced technology from Germany, Italy, Japan etc.

12. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.

13. Holding over 40 items Patent Technologies.

Automatic Multi-Layers Co-Extrusion Blow Molding Machine special for Pesticide Bottle Advantages

1) It's adopted pure hydraulic system. With compact structure, running stable and easy to control;

2) Pure hydraulic system: optimized hydraulic oil loop design gains a stable, fast, power saving property;

3) Toggle clamping system, clamping force in central of mold platen, the uniform clamping force give better parting line on products;

4) Full automatic deflashing device, saving labor cost;

5) Optional: Automatic MOOG 100point parison control

Hybrid system, give fast responding, saving energy

Servo system, to save electricity

6) Safe mode

7) Center feeding extrusion,no blind angle,fast color and material changing

Atomated Single/Double Station Multi-Layers Co-Extrusion Blow Molding Machine Special For Plastic Pesticide Bottle

Application: Dual Station Multi-Layers Co-Extrusion Blow Molding Machine Special For Plastic Pesticide Bottle

CO Extrusion Blow Molding (EBM) Steps
A hot tube of plastic material (parison) is dropped from the extruder and reaches a water-cooled die.
When the mould is closed, air is injected from the top or bottom of the container, causing it to expand like a balloon. When the material comes into contact with the walls of the mould, it freezes and maintains its rigid shape in the same way as the shape of the mould.
Bottles produced by EBM produce top and bottom burrs that should be further removed and trimmed in the sub-mould. For cases like treated bottles, the burrs should be removed either by an automatic deburring device or by hand.
After these three processes, the container is complete. Depending on the purpose of the bottle, other tests such as leak detection should be carried out if necessary.
