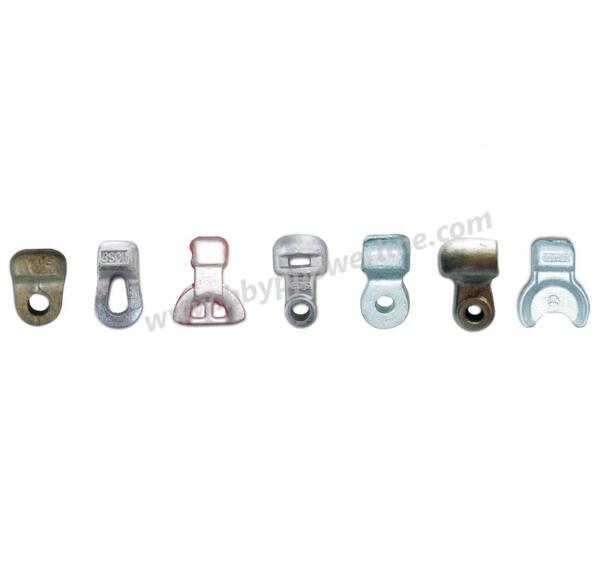

Socket Clevis

Socket Clevis also known as sleeve tongue. Widely used in transmission lines, overhead lines, and power lines, Socket Clevis is an indispensable pole hardware for connecting tension clips to socket insulators. Different types of connections are available on Socket Clevis in different countries. Sleeve tongues are available for aluminum conductor steel reinforced (ACSR) and standard ball and socket disc insulators with a ball and socket pin diameter of 16mm between 7.00mm and 18.2mm (25mm² and 150mm²) outside diameter.

YIPENG Socket Clevis are made of cast iron.The Socket Clevis manufacturing process consists of the following steps: First, the iron is heated from a solid state to a liquid state. The liquid iron is then poured into the Socket Clevis mold, which contains the hollow-shaped sleeve tongue. When the liquid solidifies, the next step called annealing is performed.

The final treatment of the socket tongue is hot dip galvanizing. Socket Clevis will not rust even in tropical conditions where the humidity is up to 90% and the average ambient temperature is +30 degrees.

The company founded in 1995, we are professional manufacturer in Electric Power Fittings, especially on aerial overhead line fitting and insulating fitting, Composite Insulators, Arrester, Drop-Out Fuse Cutout, Electrical Equipment such as power transmission and distribution products.
