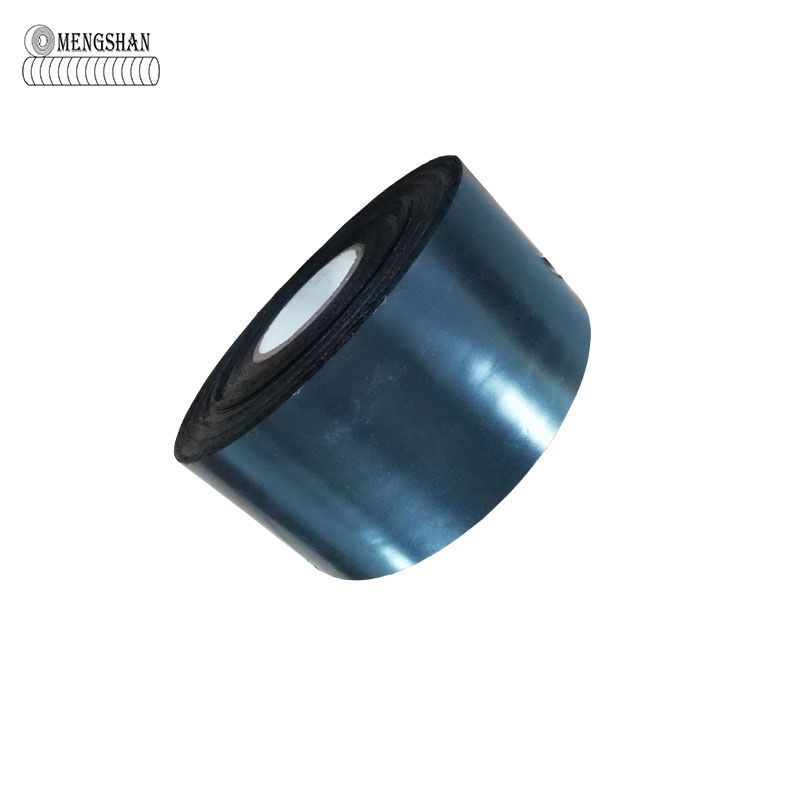

Pipeline Repair Tape
Pipeline Repair Tape
Product Description
System Description
The Qiangke Pipeline repair tape can be applied for emergency leakage repair when the piping is depressurized.
Qiangke Pipeline repair tape is a cold applied tape coating system designed for the corrosion protection of field joints, fittings, and specialty piping.
The unique butyl rubber adhesive retains conformability over a wide temperature range, yet exhibits an elevated level of shear resistance, which is a key in-ground performance characteristic.
Coupled with a pliable, very malleable polyethylene backing, this versatile pipe repair tape system can be applied by hand or with a wrapping machine.
Features
● Cold applied
● Complies with ASTMD 1000,AWWA C 214&209.
● Reliable, high-performance corrosion protection.
● Compatible with generic plant coating systems.
● Compatible with PE,FBE,TAPE &COAL TAR coatings.
Composition
The composition of the pipe wrap tape - repair tape consists of two layers, butyl rubber adhesive layer and film backing.
Adhesive : Butyl rubber
Film Backing: Special blend of stabilized polyethylene
Properties of Pipeline repair tape
|
PRODUCT PROPERTIES |
TEST METHOD |
TYPICAL VALUE |
|
|
930-35 |
930-50 |
||
|
Tensile Strength |
ASTM D1000 |
40 N/cm |
50N/cm |
|
Elongation |
ASTM D1000 |
300% |
350% |
|
Peel Adhesion to Primed Steel |
ASTM D1000 |
25 N/cm |
32N/cm |
|
Water Vapor Transmission Rate |
ASTM E 96 |
0.03 |
|
|
Water absorption At+23℃ |
ASTM D570 |
0.07% |
|
|
Volume Resistivity |
ASTM D 257 |
2.5 x 1015 ohm.cm |
|
|
Dielectric Strength |
ASTM D149 |
30 kv |
32kv |
|
Application Temperature |
|
-20 to + 75℃ |
|
|
Max serve temperature |
|
-40 to + 80℃ |
|
|
Color |
|
Black , White |
|
