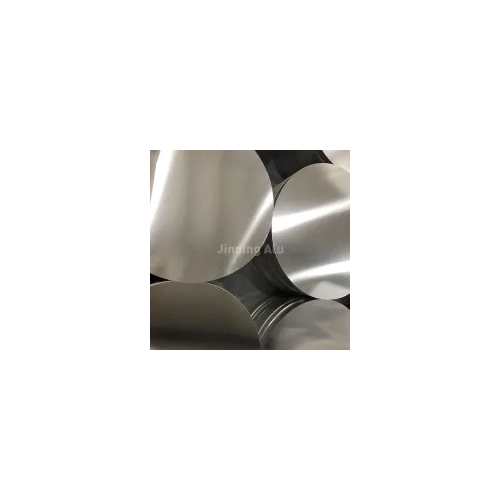

Aluminium Circle 1100

Aluminium Circle 1100 Customizable options

*Alloy:1100

*Temper:H12, H14, H16, H18, H(O), H22, H24, H26, H28

*Thickness:0.3- 6.0mm, Diameter::150-1800mm,

*Surface:nauture/plain or painted or anodized or brushed or in mirror.

*Thickness tolerance:+/-2% or according to customer’s request

*Width and Length toloerance:min.+/0.5mm

*Kinds of surface:nature, silver, mirror, painted, brushed, anoized, etc.

*MOQ:About 0.5tons each size



Aluminium Circle 1100 Technical Parameter



ALLOY	Si	Fe	Cu	Mn	Mg	Zn	Ti	Others		Al
								Single	Total
1100	0.95		0.05-0.2	0.05	/	0.1	/	0.05	0.15	99.00



The mechanical properties of 1100 grade aluminum discs are slightly higher than those of 1050 and 1060 aluminum discs, al purity is min.99%.



Aluminium Circle 1100 Applications:



Aluminum wafers are widely used in electronics, daily chemicals, medicine, education, and automotive accessories. Electrical appliances, insulation, mechanical manufacturing, automotive, aerospace, military, mold, construction, printing and other industries. For example, kitchenware such as Non-stick surface, Pressure cooking, etc., and hardware such as lampshade, water heater shell, stretching tank, etc., are among the most widely used aluminum alloy plate and strip deep processing products.



Why Choose Aluminium Circle 1100 from Shuanglin Jiate, a Renowned Aluminum Circle Supplier China?



•Impeccable Craftsmanship: Our Aluminium Circle Factory employs advanced techniques and machinery to create circles that showcase impeccable craftsmanship and uniformity.

•Wide Range of Applications: Aluminium Circle 1100 finds its place in diverse industries such as cookware, lighting, electronics, and more, thanks to its exceptional attributes.

•Reliability: Backed by our status as trusted Aluminium Circle Manufacturers in China, you can count on the reliability of Aluminium Circle 1100 to elevate your projects.

•Precision Engineering: We take pride in our precision engineering process, ensuring each circle conforms to strict quality standards.

•Expertise: With years of experience as an Aluminum Circle Supplier China, we bring unmatched expertise to every circle we produce.



Our Service



Productivity: 12000 tons per month

Transportation: Ocean, Land, Air

Place of Origin: China

Supply Ability: 12000 tons per month

Certificate: ISO9001

HS Code: 76069100

Payment Type: L/C, T/T , DP, CASH, ETC

Incoterms: FOB, CFR, CIF, EXW

Samples:A4 size free

Responsible for our materials



As a dedicated Aluminium Circle Factory, we are committed to reshaping industries with our unwavering commitment to quality.Unlock the potential of Aluminium Circle 1100 for your projects – the epitome of precision, reliability, and excellence. Choose Shuanglin Jiate, your preferred Aluminum Circle Supplier in China, and experience the difference firsthand.

►Punch processing

1. Cutting of raw materials (cutting into squares) 2. Blanking (punching into the round pieces you want)

If it is a coil material, add an uncoil at the front.

Fully automatic wafer cutting production line processing

The main components of the aluminum wafer uncoiling and blanking production line include: loading trolley, uncoiler, leveling machine, feeding machine, swing unit, dedicated closed single point mechanical press, rapid mold changing device, stacking unit, waste cutting, hydraulic system, electrical control system, etc.



►Technical characteristics of the production line:

1. CNC fully automatic, this production line starts from the uncoiling of the coil, until the entire coil material is completely unloaded, without the need for manual contact with any materials or adjustments, fundamentally eliminating the production safety and product quality hazards of ordinary punching.

2. This line can directly produce circular discs using coil materials without the need for longitudinal and transverse cutting treatment, reducing production processes, production costs, and the possibility of damaging the surface of the coil materials. The produced circular discs are guaranteed to be free of oil stains and scratches.

3. This line fully utilizes the width of the coil material and adopts high-precision servo motor drive system control to minimize the distance between discs and the distance between discs and the edge of the material, fundamentally reducing the amount of waste and achieving a raw material utilization rate of over 80%.

4. The production speed can reach 40-55 pieces per minute, improving production efficiency.

5. Due to the modular mold design, the conversion time can be reduced to less than 15 minutes when converting wafer production specifications. The diameter range of discs that can be produced ranges from 85 mm to 750 mm.

6. The advanced uncoiling system, six fold leveling machine, high rigidity mechanical press, automatic stacking system, etc. ensure the high quality of circular products.



►Technical parameters of the production line:

Roll width (mm): 500-1250800-14001000-1600

Coil thickness (mm): 0.4-3.0, 1.0-6.0

Coil weight (kg): 800010000

Dropping diameter (mm): 85-660, 85-750100-900

Number of material drops (spm): 40-55



►Packing and logistics:

Packing: Strong seaworthy wooden pallet or customized

Loading Port: Shanghai, Ningbo, Xiamen, Qingdao

Loading: 1x20gp is valauble to load such heavy goods, 1x20gp can load about 20tons to 27tons.





FAQ about Aluminium Circle 1100



Q1: Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.



Q2: What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirements, and the quantity to order.



Q3: It's my first time to import steel products, can you help me with it?

A:Sure, we have the shipping agent to arrange the shipment, and we will work together.



Q4: What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Qingdao, Ningbo ports, you can specify other ports, according to your needs.



Q5: What about product prices information?

A:Prices varied, according to periodic price changes of raw materials.



Q6: What is your terms of payment?

A:Payment≦1000USD, 100% in advance. Payment≧1000USD, 30% T/T in advance, balance before shipment or based on BL copy or LC at sight.Click for more.



Q7: Do you provide ODM services?

A:Yes, if you have your own design, we can produce according to your specification and drawing.



Q8: What are the certifications for your products?

A:ISO 9001, MTC, third parties' inspections such SGS, BV, ect. are available.



Q9: How long does your delivery time take?

A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.



Q10: How many countries you already exported to?

A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, somalia and other African countries. Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.



Q11: Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory.



Q12: Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
