Steel Structure Workshop

▶ Steel Structure Workshop Introduction

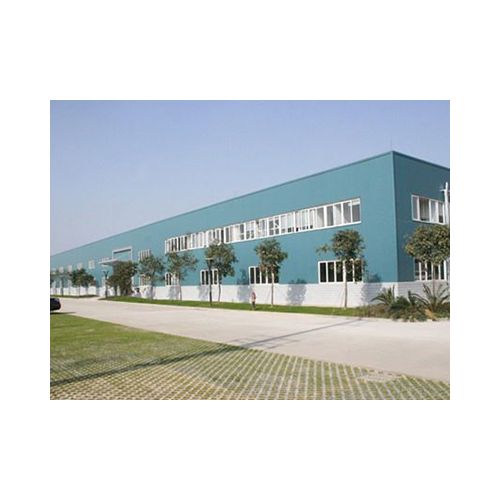

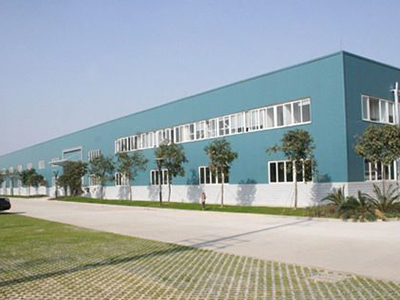

The prefabricated steel structure workshop is used for industrial production, and all steel structures are painted and transported to the project site for installation. Because the steel structure can be manufactured in the factory and installed on site, the construction time is greatly reduced. Using steel, it can significantly reduce construction waste and be more environmentally friendly. Therefore, it is widely used in industrial and civil buildings.

▶ Steel Structure Workshop Advantages

1) Environmentally friendly.
Steel structure materials can be recycled to reduce pollution during construction and demolition.

2) High Performance.
The steel frame workshop is durable, easy to service and simple to maintain, it can be used for more than 50 years.

3) Light weight and high strength.
The weight of the prefabricated steel structure workshop is only about 1/2 of that of the reinforced concrete building, which meets the needs of spacious space. There is no column barrier inside, the span is large, and the interior space is vast.

4) Quick installation.
The construction time of steel structure workshop is short. Since the components are all prefabricated at the factory, only assembly is required on site. The construction period is greatly shortened, saving a lot of time and money.

5) Beautiful appearance.
The steel structure workshop design is beautiful and practical, with simple and smooth lines. Color wall panels are available in a variety of colors, and other materials can also be applied for the walls. So more flexible.

6) Excellent security.

The prefabricated steel workshop can be isolated from the outdoor environment and avoid leakage such as water seepage. It also has excellent fire and corrosion resistance.

▶ Steel Structure Workshop Main functions

Large span of the building space and install quickly

Fast and easy installation greatly shorten the construction time which can reduce the costs

▶ Steel Structure Workshop Use

Our target customer: Builders, schools, troops and the government

Steel structure can be used as the roof of stadiums, theaters, exhibition halls, waiting halls, stadium stands, gas stations, toll stations, awnings, hangars, factory buildings and other buildings. Please feel free to contact us for the latest metal shop buildings prices.

▶ Steel Structure Workshop Components

The column top beam of the workshop steel structure is assembled and welded by hot-rolled H-beam or steel plate. H-beams are made of hot-rolled steel, and the manufacturing precision is easy to control. The column should be calibrated after assembly and welding, which can prevent the deformation of H-beam due to welding.

Secondary frame
1. Purlins:
Purlins are used to support the roof and siding and transfer loads from the roof and siding to the main steel frame.
2. Support
There are roof supports and wall supports to stabilize the steel frame. Supports are made of steel rods, L-angle steel or square tubes
3. Pendant
The vertical rod is used to connect two purlins to adjust and control the stability of the two adjacent purlins.
