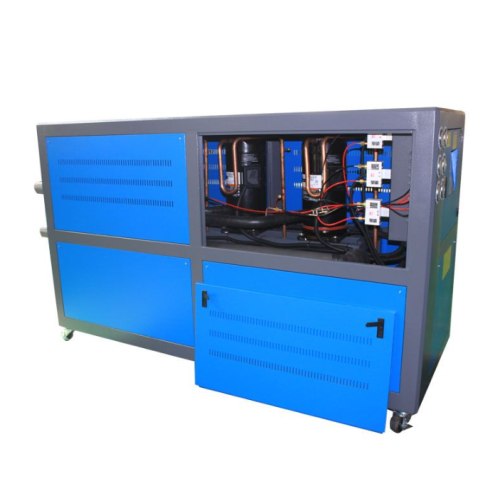

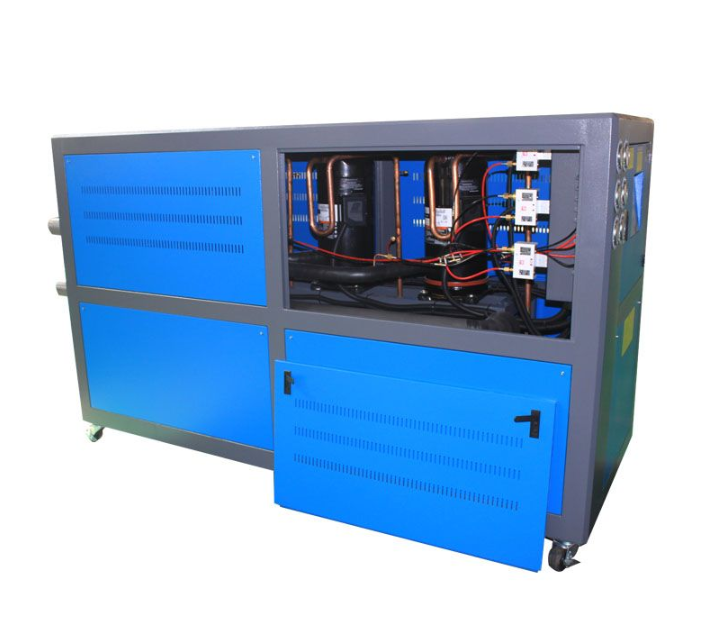

High Efficiency Industrial Water Cooled Scroll Chiller

Product Description

The High Efficiency Industrial Water Cooled Scroll Chiller cooling capacity from 9KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. It is automatically adjusted according to load changes and is more energy efficient.

Features of Water Cooled Scroll Chiller:

1. Energy with high efficient

2. Operation noise and vibration is low

3. No friction loss

4. Low starting current

5. High system sustainability

6. Environmental protection

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Box type water cooled scroll industrial chiller(R-22)
Model		HTB-9S	HTB-15S	HTB-23S	HTB-30S	HTB-35S	HTB-45S	HTB-46S	HTB-60S	HTB-90S	HTB-120S
Cooling Capacity	KW	8.5	15	23.2	30.1	35	45	46.4	60.2	90.3	120.4
	Kcal/Hr	7310	12900	19952	25886	30100	38700	39904	51772	77658	103544
	RT	2.42	4.26	6.6	8.56	9.95	12.79	13.19	17.12	25.68	34.23
Power	50HZ	3P-380V-50HZ
Comprosser	Mode	Full closed high efficiency flexible scroll compressor
	Input power(KW)	1.97	3.45	4.94	6.5	7.4	10	9.88	13	19.5	26
	Rated load current(A)	3.9	8.2	9.8	12.6	13.7	21	19.6	25.2	37.8	50.4
Wiring specification		4	4	6	6	6	10	10	16	25	25
Add unloading way		0,100%						0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling water temp（℃）	Inlet temp 30℃/outlet temp 35℃
	Cooling water flow(m³/h)	1.83	3.23	4.99	6.47	7.53	9.68	9.98	12.94	19.41	25.89
	Waterpipe diameter(DN)	32	32	40	40	40	50	50	50	65	80
Evaporater	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.46	2.58	3.99	5.18	6.02	7.74	7.98	10.35	15.53	20.71
	Waterpipe diameter(DN)	32	32	32	40	40	50	50	50	65	80
Safeguard		Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc.
Size	L(mm)	980	1210	1250	1250	1400	1400	1500	1640	1900	2500
	W(mm)	650	650	700	700	700	700	700	700	850	800
	H(mm)	1080	1080	1100	1100	1100	1100	1100	1100	1250	1250
Units Weight	Kg	210	240	300	320	340	370	440	560	630	720
