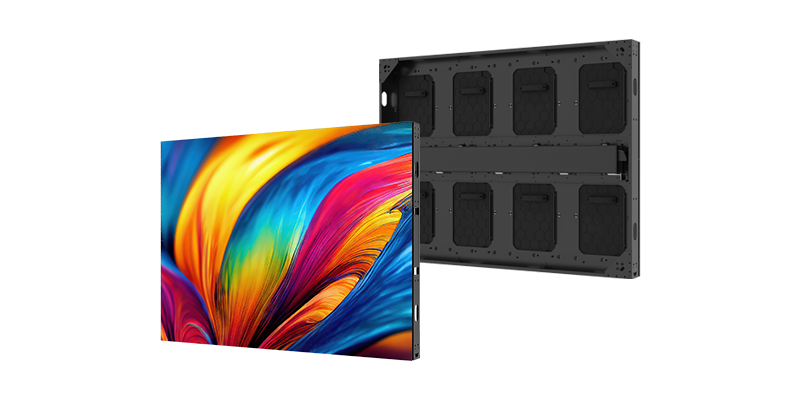

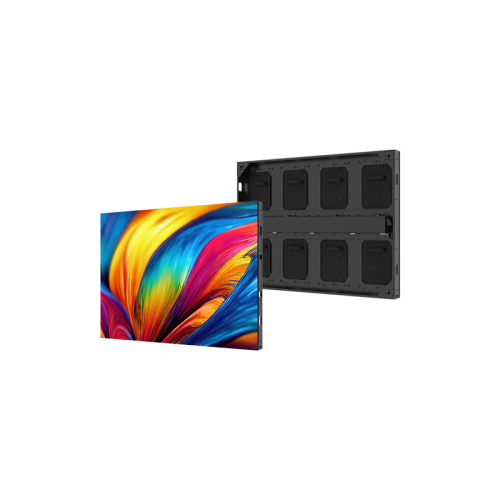

Outdoor Display iMPOSA E4 H

Outdoor Display

Product Description

E4H-6.67丨E4H-8丨E4H-10

Outdoor Display iMPOSA E4 H Features:
· Ultra-high contrast ratio, against strong sunshine and high temperature.
· Full-aluminum structure improves heat conductivity and dissipation, reducing internal heat of a led display.
· PProfessional thermodynamics fin-shaped heat dissipation design brings higher stability.
· Block structure design saves installation costs and time.

Model E4H-6.67 E4H-8 E4H-10
Pixel Pitch (mm) 6.67 8 10
Pixel Configuration SMD
Size of Module (mm) (H x W) 480×320 / 320×320
Resolution of Module (pixels) (H x W) 72×48 / 48×48 60×40 / 40×40 48×32 / 32×32
Resolution of Cabinet (pixels) (H x W) 960×1280 / 960×960 / 640×1280 / 640×960
Weight (kg/m²) 25
Viewing Angle 160°/120°
Brightness (cd/m²) 6000
Power Consumption Max./Avg. (W/m²) 650/210
IP Rating Front:IP65 / Rear:IP54
Grey Level 16 Bit
Refresh Frequency (Hz) 3840
Maintenance Front/Rear
