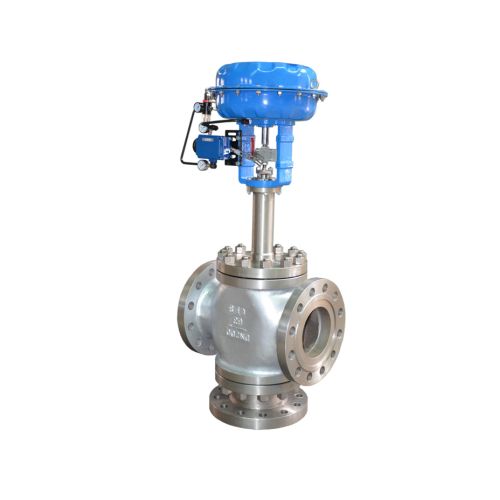

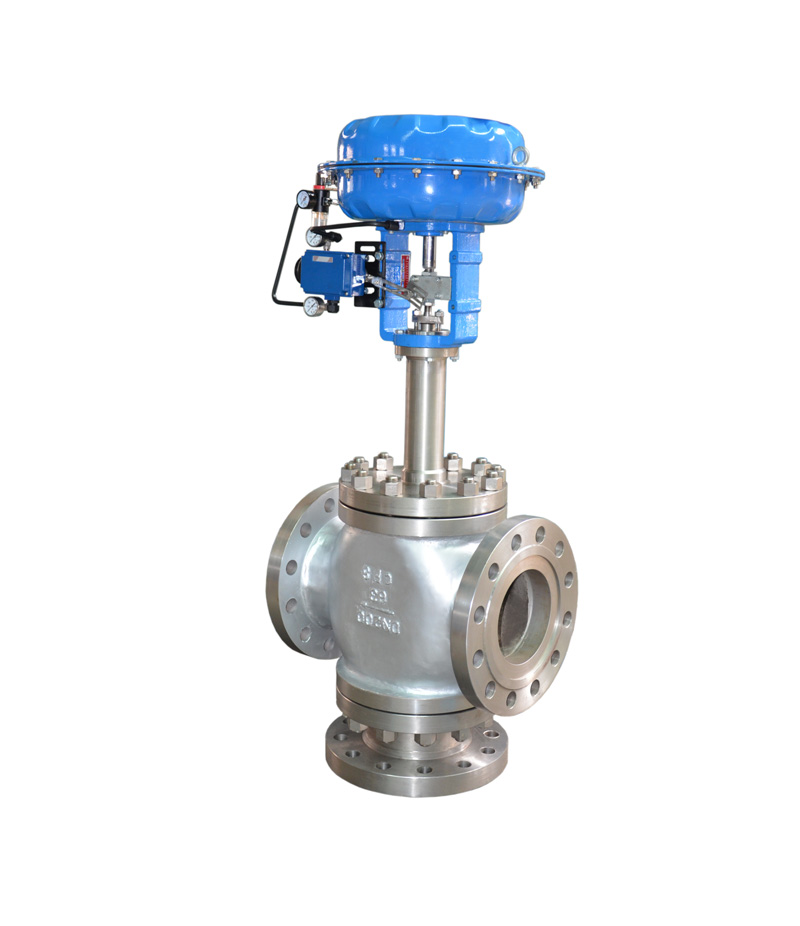

SUPCON LN Series 3 Way Globe Valve
LN4133 3 Way Globe Control Valve to achieve drip sealing, leakage level VI level, ratio is typically used to regulate, through adjust the position of valve core will be two separate fluid by required from common export ratio, when the DN 80 mm, can also be used to bypass occasion. LN5134 3 Way Globe Control Valve to achieve drip seal, leakage level grade VI, commonly used for heat exchange system of large diameter, high pressure differential bypass, normal sizes of 3 way globe control valve is 1" to 12".
3 Way Globe Valve
A 3-Way Globe Valve is a type of industrial valve that has three openings or ports, allowing it to control the flow of fluid or gas among three different directions. It is commonly used in various applications where diversion or mixing of flow is required. The design of the valve includes a globe-like body with an internal baffle or plug that directs the flow according to the valve's configuration.
The three primary configurations of a 3-Way Globe Valve are:
Mixing Valve: In this configuration, the valve allows the flow from two inlet ports to combine and exit through a single outlet port. It is used when two streams of fluid need to be mixed in a controlled manner.
Diverting Valve: In a diverting configuration, the valve allows the flow from a single inlet port to be directed to one of two outlet ports. It is used to divert the flow between two different destinations.
Universal Valve: The universal configuration is a combination of the mixing and diverting valves. It allows the flow from two inlet ports to be directed to one of two outlet ports, or it can mix the flow from both inlets and discharge it through the third port. This provides a versatile solution for various flow control scenarios.
Key features and benefits of 3-Way Globe Valves:
Versatility: 3-Way Globe Valves offer multiple flow paths, making them suitable for applications where flow diversion or mixing is required.
Precise Flow Control: The globe valve design allows for accurate and fine-tuned control over the flow, making it suitable for applications that demand precise regulation.
Reduced Installation Space: Using a single valve with multiple flow paths can save space and simplify the piping layout compared to using multiple valves.
Cost-Effective: In certain applications, a 3-Way Globe Valve can be more cost-effective than installing multiple individual valves.
Flow Isolation: When the valve is in the closed position, it provides positive shutoff and isolates the process media from the connected piping.
3-Way Globe Valves are widely used in various industries, including HVAC systems, chemical processing, water treatment, and industrial processes where flow diversion, mixing, or control is necessary. Proper selection of the valve type and configuration is crucial to ensure optimal performance and efficient flow management for specific applications.
The SUPCON LN Series 3 Way Globe Valve are for precise 3-way flow control for mixing two inlets into one outlet. They use a linear trim. 3 way valves are designed to work with either a pneumatic or electronic actuator. The 3-way globe control valve is a shut-off valve with three pipe connections for general co-mingling (mixing) or diverging (splitting) service. They are available in both ANSI Class 125 and 250. 3 way globe control valves include cage, ported and stem-guided designs, with options for high-temperature service and can be specified with end connections to suit most piping schemes.
