Mechanical Multi Directional 28 Ton Heavy Lift Forklift Lifter
Product Description
Country/Region：China
City：Xiamen
Product Attributes
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Related Keywords Heavy Lift Forklift
Description by Manufacturer
28 tons Rated Load 28000 Kgs container Forklift for lifting and stacking heavy containers
Popular use for heavy containers in port, terminals, container yards etc.
High quality products, high efficiency, high return on investment.
Please don't hesitate to contact us for more details.
| Parameters: | Vehicle configuration | FD250 | |
| Performance | Rated load | 25000 | |
| Load center | 1200 | ||
| Mast tilt angle (front/rear) | º | 6/12 | |
| Overall dimensions | Length | mm | 9010 |
| Width | mm | 3060 | |
| Height | mm | 3960 | |
| Mast lifting height | mm | 4000 | |
| Fork size (L*W*H) | mm | 2400X300X120 | |
| Min. turning radius | mm | 6160 | |
| Max. travel speed (with load) | Km/h | 25 | |
| Lifting speed (with load) | mm/s | 260 | |
| Gradeability (with load) | % | 20 | |
| Weight | Kg | 36500 | |
| Tyre | Front | 4X14.00-24/28PR | |
| Rear | 2X14.00-24/28PR | ||
| Wheel tread | Front | mm | 2200 |
| Rear | mm | 2170 | |
| Wheelbase | mm | 4400 | |
| Min. ground clearance | mm | 350 | |
| Engine | Model | WD10G220E21 | |
| Rated power | KW | 162 | |
| Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
Main features:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.

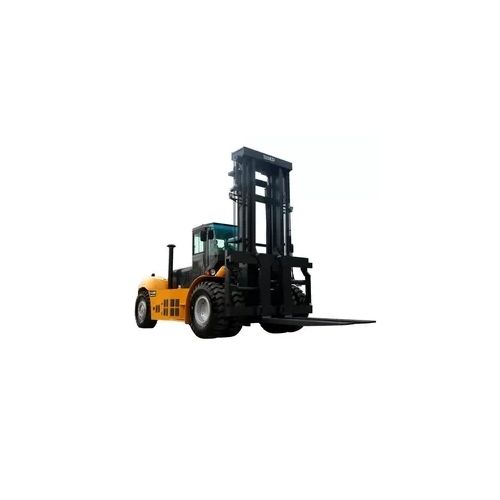

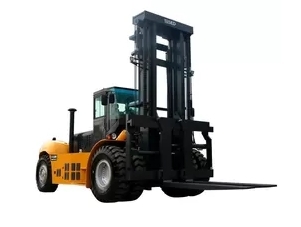

Product Image
Description by Manufacturer
28 tons Rated Load 28000 Kgs container Forklift for lifting and stacking heavy containers
Popular use for heavy containers in port, terminals, container yards etc.
High quality products, high efficiency, high return on investment.
Please don't hesitate to contact us for more details.
| Parameters: | Vehicle configuration | FD250 | |
| Performance | Rated load | 25000 | |
| Load center | 1200 | ||
| Mast tilt angle (front/rear) | º | 6/12 | |
| Overall dimensions | Length | mm | 9010 |
| Width | mm | 3060 | |
| Height | mm | 3960 | |
| Mast lifting height | mm | 4000 | |
| Fork size (L*W*H) | mm | 2400X300X120 | |
| Min. turning radius | mm | 6160 | |
| Max. travel speed (with load) | Km/h | 25 | |
| Lifting speed (with load) | mm/s | 260 | |
| Gradeability (with load) | % | 20 | |
| Weight | Kg | 36500 | |
| Tyre | Front | 4X14.00-24/28PR | |
| Rear | 2X14.00-24/28PR | ||
| Wheel tread | Front | mm | 2200 |
| Rear | mm | 2170 | |
| Wheelbase | mm | 4400 | |
| Min. ground clearance | mm | 350 | |
| Engine | Model | WD10G220E21 | |
| Rated power | KW | 162 | |
| Max. torque | N.m | 786 |
Note: the above data are subject to change without prior notice.
Main features:
Engine: Adopt Cummins or Weichai turbocharging engine, powerful, energy conservation,environmental protection, satisfies the requirement of high efficiency operation.
Transmission & torque converter: Use hydraulic power shift transmission, big traction in combined operating condition, the transmission system is more reliable.
Adopt double turbine hydraulic torque converter , single lever control for the speed changing, easier for operation.
Driven axle: Reinforced heavy duty type driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: Adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: Use four heavy caliper disc brake, thicken brake disc, the rear air tank. especially have very good thermostability performance when heavy loaded, braking effect stable. heat dissipation faster, reliable and safe operation.
Control system: Pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Hydraulic system: Double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Cooling system: Adopt independent transmission oil and hydraulic oil cooling, increasing system stability.
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse and longitudinal stability of forklifts. The forklifts get through the 3D finite element analysis, superior structure, reliable quality, the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge and frame.
Tyre: Sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded ,safe and reliable.
Fork: Use Cascade Fork, with hydraulic fork positioner and side shift, easy operation and reduce drivers’ labor intensity.
Mast: Box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: With air-conditioning , and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation,damping luxury cab with sunroof, wide view and comfortable seats, flexible control.Note: the above data are subject to change without prior notice.
