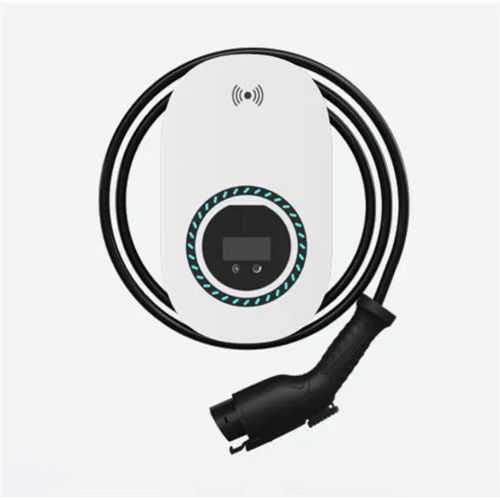

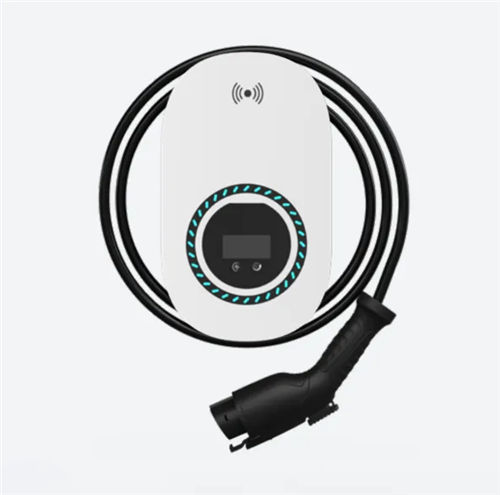

Type 1 Wallbox EV Charging Station

Product Description

Leakage Protector: CCID 20;

Support reservation charging, power adjustment

RFID function for residential application;

Complies with the OCPP1.6J protocol

Optional wireless connection with Bluetooth /WiFi /4G for business applications ;

Optional wall-mounted installation or pedestal installation for different installation demand

Optional Ethernet/ 485 interfaces/Dynamic load balance for business applications

Ring 12 color ambient technology light;

Our Type 1 Wallbox EV Charging Station is designed for both home and commercial use. For home use, they come equipped with Bluetooth & Wi-Fi or RFID card functionalities, making it convenient for users to charge their electric vehicles at home. For commercial use, they can be integrated with OCPP communication protocols to connect to OCPP charging platforms for public charging station management and billing.

With a power output range of 7.6-11.5KW, our Type 1 charging stations can meet the charging needs of most electric vehicle owners. They also support dynamic load balancing and come with CCID 20 leakage protection to ensure the safety of household electricity.

Specifications:
Product model:	F-EVAPCA-07	F-EVAPCA-09	F-EVAPCA-11
Input Power:	7.6kW	9.6kW	11.5kW
Input Voltage:	AC 240V
Rated Input Current:	32A	40A	48A
Operating Frequency:	50Hz
Phase:	Singe Phase
IP Rating:	IP55
Altitude:	≤2000m
Related Temperature:	5％～95％ No condensation
Operating Temperature:	-25℃～+50℃
Storage Temperature:	-40℃～+85℃

AC EV Charging Stations are pivotal in advancing electric mobility by providing accessible and efficient charging solutions. As the EV market grows, the expansion of AC charging infrastructure will play a crucial role in meeting the needs of drivers and promoting sustainable transportation solutions globally.
