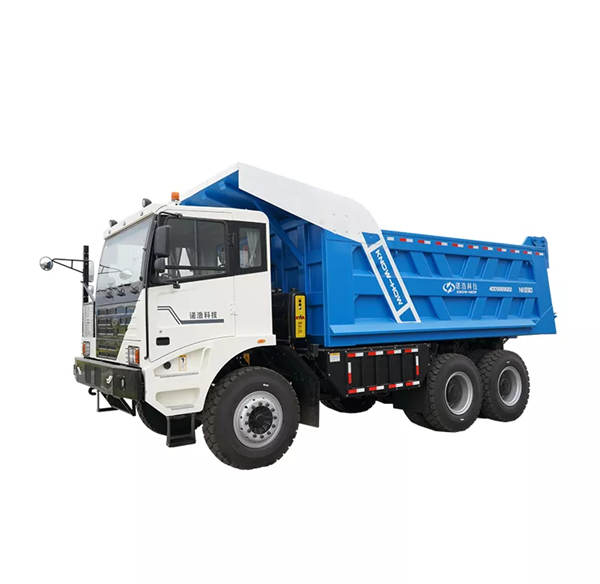

NKE90C 350kwh Electric Dump Truck
NKE90C 350kwh Electric Dump Truck
Product Description
90 tons grade 350kwh electric dump truck with CATL LFP (Lithium iron phosphating) battery, charging mode, full hydraulic steering, rated loading 60 tons, dual motor mining electric dump truck. zero emission. Zero oil changes. Zero fuel cost
Welcome to choose KNOWHOW, specializing in providing efficient and cost-optimized mining dump truck solutions. We are among the industry leaders with excellent work efficiency, comprehensive after-sales service and strict production processes
Related Dump Truck:
NKE90C 350kwh Electric Dump Truck loading 60 tons
NKE105D4 422kwh electric dump truck loading 70 tons
Electric mining dump truck are engineered for performance, engineered for comfort, and are built to last
EV dump trucks with our state-of-the-art electric powertrains will become your zero-emission, reliable partner for bulk materials!
We understand that our customers are concerned about the cost, through the fine costing, to provide you with competitively priced electric dump trucks, so that you can receive a return on your investment faster!
Features of 90 Tons Grade 350kwh Electric Dump Truck
Provides a sustainable and cost-effective alternative to conventional diesel-powered dump trucks
Environmental Friendly: Zero Emission, Zero Pollution low-consumption, more energy saving
suitable for mining: Smart electric dump trucks designed for off-highway mining applications
excellent driving experience: Our fleet of electric dump trucks offers a quiet, smooth and familiar ride. Whether you are converting your fleet from gasoline to electric or already have an electric fleet, electric trucks provide your drivers with an excellent driving experience.
Provide practical, reliable service while delivering zero emissions on the road.
Energy saving: intelligent power output and energy feedback, energy saving 20% L/T
High efficiency: Heavy-duty trucks with the highest payload in the 6×4 class.
Quality batteries storage: The batteries have the best range, efficiency and life on the market, enabling fast-charging batteries.
The batteries store and release large amounts of energy, allowing these fleet vehicles to handle the tough tasks of hauling and dumping materials.
Safe and Trusted: Self-developed technology, multiple interlock safe driving
Stable and reliable: Enhanced framework overload capacity improved by 20%. Average-stop working time improves by 50% than competing products
Powerful and Efficient: Integrated designed electric system1 hour to charge, and 5 mins to replace
Our mining dump trucks are known for their superior work efficiency, ensuring that your work is more efficient and smoother through advanced technology and a reliable and robust design
Customized vehicles: All-electric range varies based on route or driving cycle, environmental conditions, vehicle or equipment configuration, and driver behavior
Specification
| Vehicle Spec. (Unit) | NKE90C |
| Battery Mode | LFP (Lithium iron phosphating) Battery Charging |
| Vehicle Weight (kg) | 34000 |
| Loading Weight (kg) | 60000 |
| Max.Total Weight (kg) | 90000 |
| Wheel Base (mm) | 3850+1500 |
| Wheel Track (Front/Rear) (mm) | 2790/2605 |
| Boundary Dimension (mm) | 9050×3600×4100 |
| Lifting Height (Degree) | 48 |
| Hopper Capacity (Rated/Heap) (m3) | 33/38 |
| Turning Radius (mm) | <12000 |
| Tyre Type (m) | 14.00R25 (Tread Pattern Optional) |
| Min. Ground Clearance (mm) | 380 |
| Rear Axle Ratio | 14.298 |
| Axle Quantity | 3 |
| Driving Type | 6*4 |
| Rated Power/Peak Power (Kw) | 450/600 |
| Transmission Gear | 7 Gear |
| Max. Gradeability (%) | ≥35 |
| Max. Speed (Km/h) | ≥42 |
| Front Suspension | Plate Spring+Push Rod |
| Rear Suspension | Trunnion Shaft+Plate Spring+Push Rod |
| Driving Battery Capacity (Kwh) | 350 |
| Axle Loading Front/Middle/Rear (t) | 20+35+35 |
| Motor power | 350KWH |
