130 Series Sliding Patio Door
130 Series Sliding Patio Door
Product Description

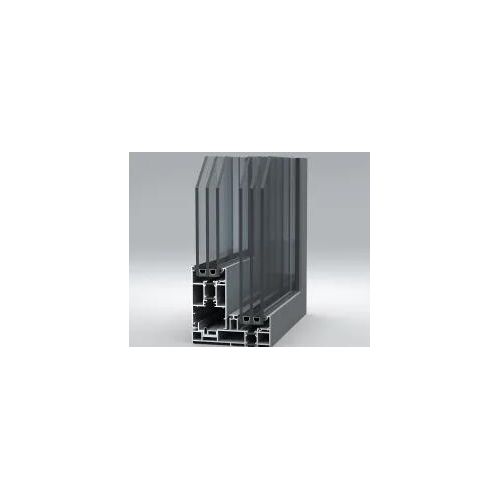

About 130 Series Aluminum Sliding Patio Doors
The 130 Series sliding patio door is a great product for the commercial market as well as for the modern home design market. 130 Series Aluminum sliding patio doors made from a lightweight aluminum frame and the frame material is very strong. Can create a modern yet timeless look. Our aluminum sliding patio doors feature a thermally enhanced design that increases energy efficiency and requires minimal maintenance. For more series of sliding patio doors, check out our ALUMINUM SLIDING DOORS page.
130 Series Aluminum Sliding Patio Doors Parameters
|
Wall thickness |
2.0mm |
|
Outer Frame Structure Depth |
130mm |
|
Sash Structure Depth |
58mm |
|
Insulation Strip Depth |
18mm |
|
Frame Visible Face Width |
31mm |
|
Intermediate Mullion Visible Face Width |
77mm |
|
Sash Visible Face Width |
77mm |
|
Compatible Glass Thickness |
24-39mm |
|
Opening Function |
Sliding Opening |
|
Wind Pressure Resistance Performance GB/T 7106 |
Grade 9, 5K Pa |
|
Air Tightness Performance GB/T 7106 |
Grade 8, 0.26m³/(m•h) |
|
Water Tightness Performance GB/T 7106 |
Grade 6, 700 Pa |
|
Thermal Insulation Performance GB/T 8484 |
Grade 7 |
