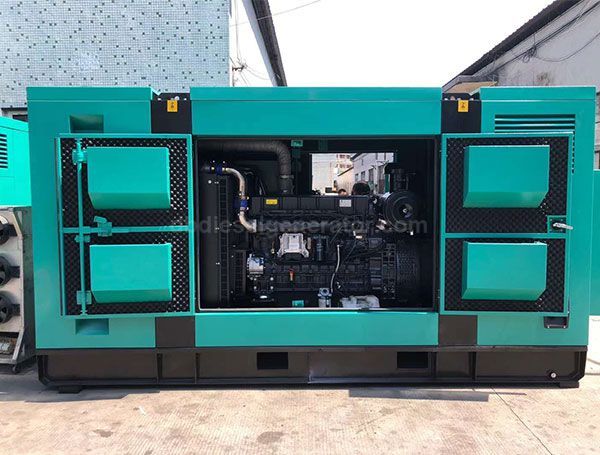

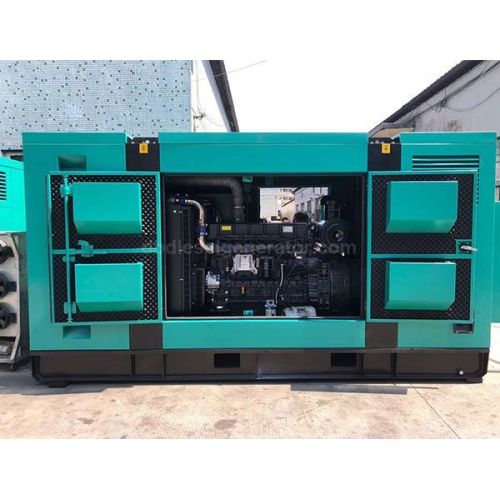

100kw Silent Diesel Generator

Diesel Generator Set Data

Model: DB-100GF

Prime power: 100KW/125KVA

Rated current: 180A

Rated frequency: 50Hz/60Hz

Power factor: 0.8lag

Rated voltage: 380~480V

Transport package: plastic film/ plywood case

The 100kw silent diesel generator produced by our company is powered by domestic and foreign well-known engine brands MTU, Perkins, Volvo penta, Cummins, Shangchai, Yuchai and other diesel engines. The canopy are made of 3mm cold plate. At the same time, after strict pickling, phosphating and multi-layer paint baking treatment, it can effectively achieve the effect of fire prevention and corrosion prevention. Equipped with 8 hours' base bottom fuel tank. The interior is treated with high-density flame-retardant and high-quality sound-absorbing cotton with a thickness of 5 cm. The smoke exhaust system is treated with thermal insulation cotton and equipped with secondary silencing device, and the noise is kept below 75dB during operation. The unique blowdown valve design, battery switch design and explosion-proof lamp device are more humanized.

With exquisite workmanship and remarkable noise reduction effect, our silent generator is quickly loved by customers at home and abroad and has won a large number of export orders. It is exported to Southeast Asia, America and African countries. As the main feature of the company, low-noise generator set products can not be satisfied with the current situation. We should continue to innovate and reform, and design and manufacture low-noise generator set products with more noise reduction effect.
