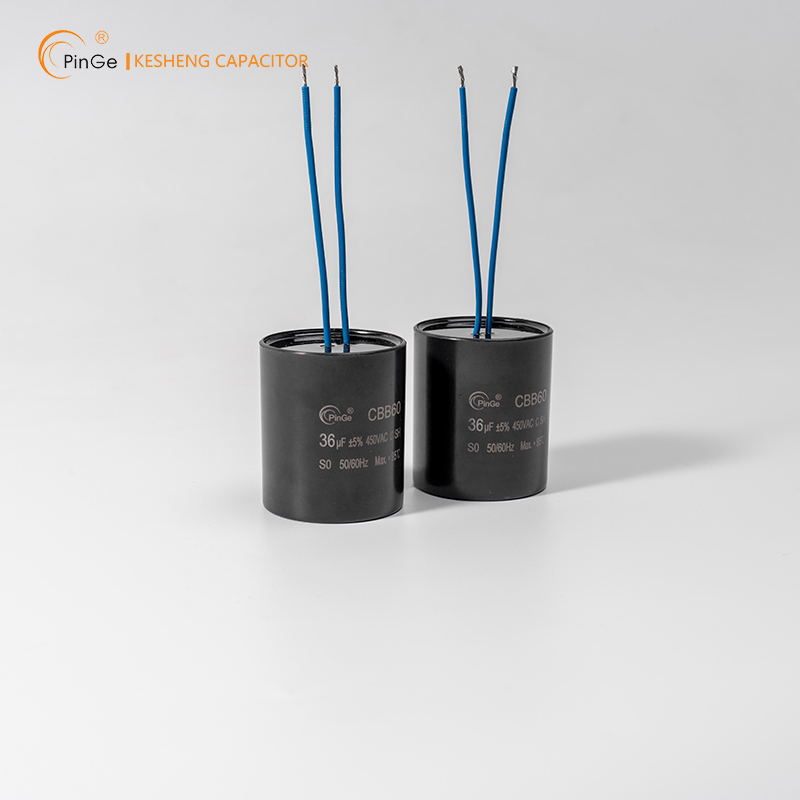

cbb60 capacitor 300vac 30uf

Reference standards

GB/T3667.1,  UL810, EN60252-1

Rated voltage UN

250~500 VAC

Rated capacitance CR

1~60uF

Capacitance tolerance

± 5 %

Operating temperature

-25/70℃; -40/70℃; -40/85℃; -40/105℃

Storage temperature

-40 / 70℃

Dissipation factor (DF)

20 x 10-4 at 20°C, 50 Hz

Insulation resistance(IR)

≥2000MΩ .μF (500Vdc,60s)

Voltage test between terminals (Ut-t)

2 x UN for 5 s

Voltage test between terminals with case

2200 Volt for 2 s

Expected life

CLASS B - 10000 hours
CLASS C - 3000 hours

Dielectric material

Metalized polypropylene film

Terminal

Wires

Case

Plastic

Filling

V-0 Flame retardant epoxy resin V-0

Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.
