Aluminum Electrolytic Capacitors Wire Lead Type

Product Description

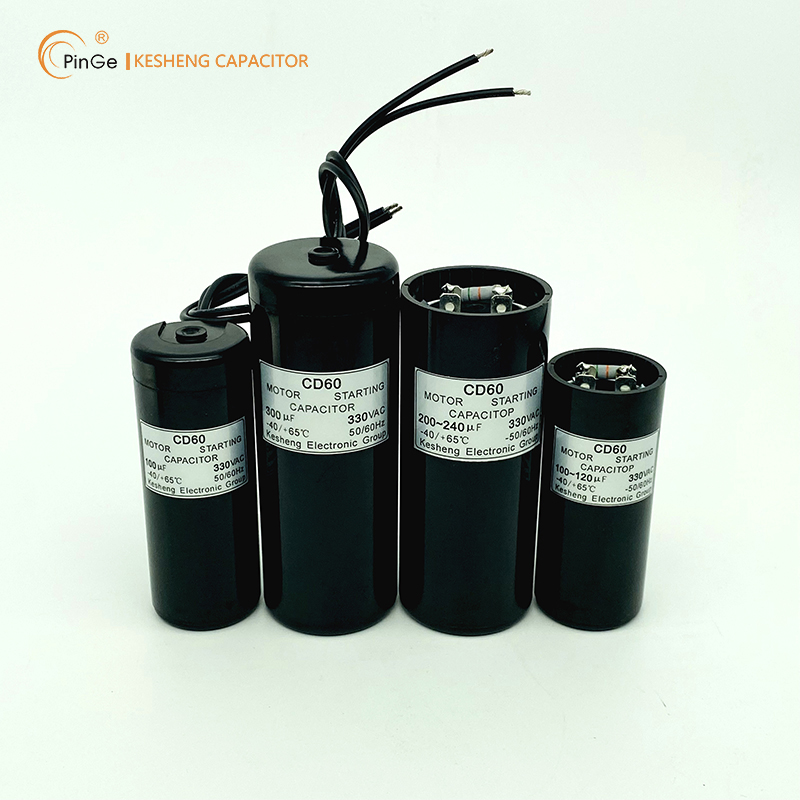

CD60 Aluminum Electrolytic Capacitors Wire Lead Type
■ Non-inductance winding structure
■ Excellent self-healing performance
■ Small equivalent series resistance
■ Low temperature rise
■ Stable performance,high reliability

Specification

Reference standards	GB/T3667.1, UL810, EN60252-1
Rated voltage UN	110~330VAC
Rated capacitance CR	21~1536uF
Capacitance tolerance	0~20%
Operating temperature	-40℃~+65℃
Storage temperature	-40 / 70℃
Dissipation factor (DF)	20 x 10-4 at 20°C, 50 Hz
Insulation resistance(IR)	≥2000MΩ .μF (500Vdc,60s)
Voltage test between terminals (Ut-t)	2 x UN for 5 s
Voltage test between terminals with case	2200 Volt for 2 s
Expected life	2000 hours
Dielectric material	Paper pulp
Terminal	Lead wire
Case	Al 99.5%
Filling	Glycol +Organic acid salt
Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.

Drawing
