Vehicle mounted ATV winch-P3500
A 3500 lb winch is a type of winch that is capable of pulling or lifting objects up to a maximum weight of 3500 pounds (1587 kg). It is commonly used in off-road vehicles, trailers, and boats for various applications such as hauling, pulling, and winching.
Product Description

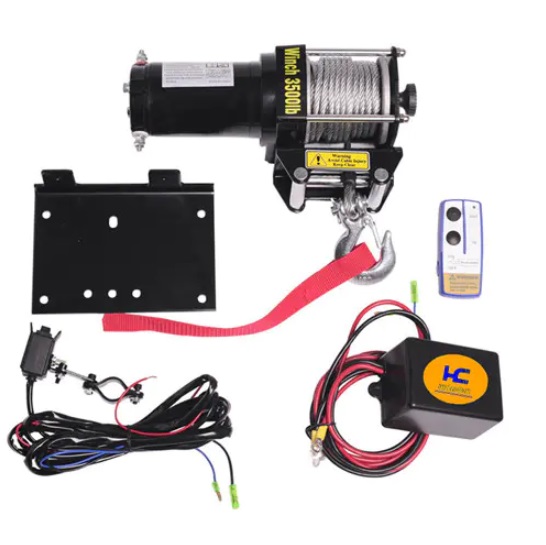

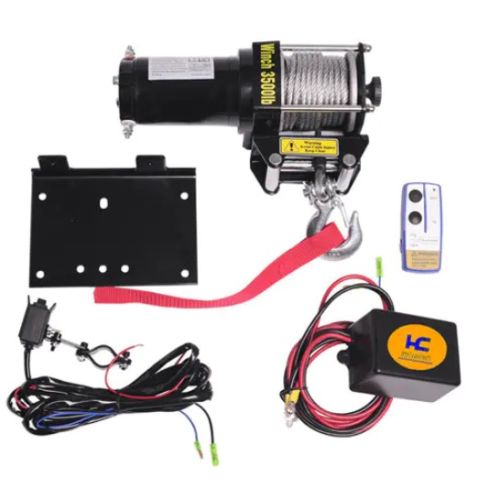

VEHICLE MOUNTED ATV WINCH-P3500
powers load in and out
full metal differential planetary gear train
pull and turn freespooling clutch
Low-amp permanent magnet motor
Circuit breaker protector optional
Removable clevis pinned latched hook with rope thimble
4-way roller fairlead
Mounting plate
A ATV Winch is a type of winch that is capable of pulling or lifting objects up to a maximum weight of 3500 pounds (1587 kg). It is commonly used in off-road vehicles, trailers, and boats for various applications such as hauling, pulling, and winching.
When selecting a 3500 lb winch, it is important to consider the type of vehicle or equipment it will be used with, as well as the weight of the load being lifted or pulled. Additionally, factors such as the cable length, winch motor type, and control mechanism should also be taken into consideration.
To ensure the safe and effective use of a 3500 lb Electric Winch, it is important to follow the manufacturer's instructions and safety guidelines, as well as to regularly inspect and maintain the equipment.
|
Specification |
|
|
Rated line pull |
3500lb (1590kg)single line |
|
Motor |
1.5hp/1.1kw, permanent magnet 12V |
|
Control |
Remote switch |
|
Gear reduction ratio |
153:1 |
|
Drum size |
Ø1.24"*2.88" (Ø31.5*73mm) |
|
Cable |
Ø5.5mm*12m |
|
Overall dimension (L*W*H) |
12.1”(L)×4.1″(W) ×4.4”(H) |
|
Mounting bolt pattern |
3.13″(79.3mm) |
|
Weight |
7kg |
|
3500LBS LINE SPEED AND AMP DRAW (FIRST LAYER) |
||
|
Line pull lb(kg) |
Line speed ft/min(m/min) |
Current(A) |
|
0 |
10.5(3.2) |
10 |
|
1000(454) |
7.5(2.3) |
40 |
|
2000(907) |
4.2(1.3) |
90 |
|
3000(1361) |
2.3(0.7) |
145 |
|
3500(1590) |
4.6(1.4) |
180 |
|
3500LBS LINE PULL AND CABLE CAPACITY |
|||||||
|
Layer of cable |
1 |
2 |
3 |
4 |
5 |
6 |
|
|
Rated line |
Lbs |
3500 |
3000 |
2250 |
1890 |
1590 |
1370 |
|
pull per layer |
Kgs |
1590 |
1361 |
1022 |
859 |
722 |
622 |
|
Cumulative |
Ft |
4.6 |
4.9 |
11.5 |
19.3 |
28.5 |
30.1 |
|
Cable capacity |
M |
1.4 |
1.5 |
3.5 |
5.9 |
8.7 |
9.2 |
